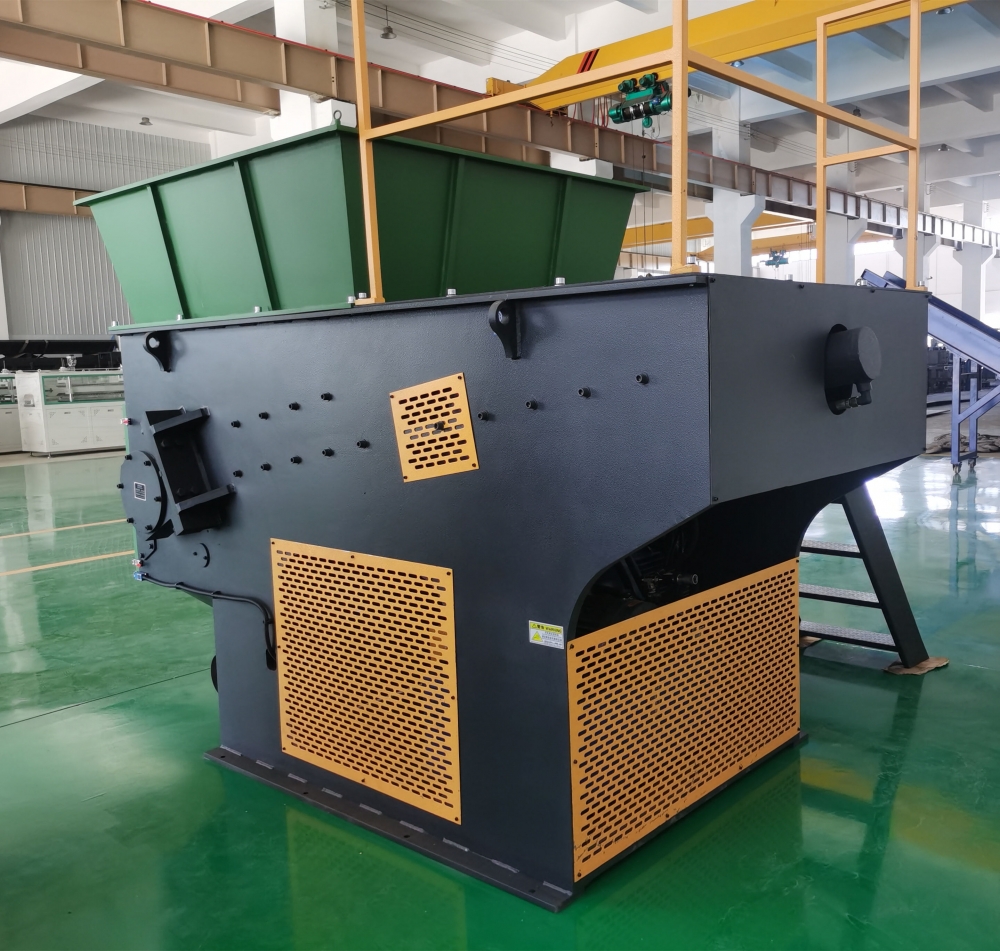

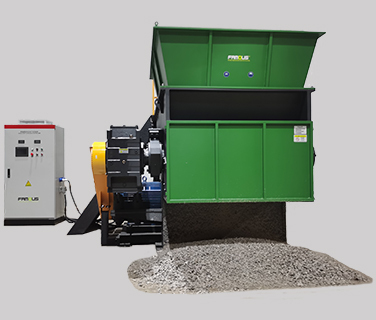

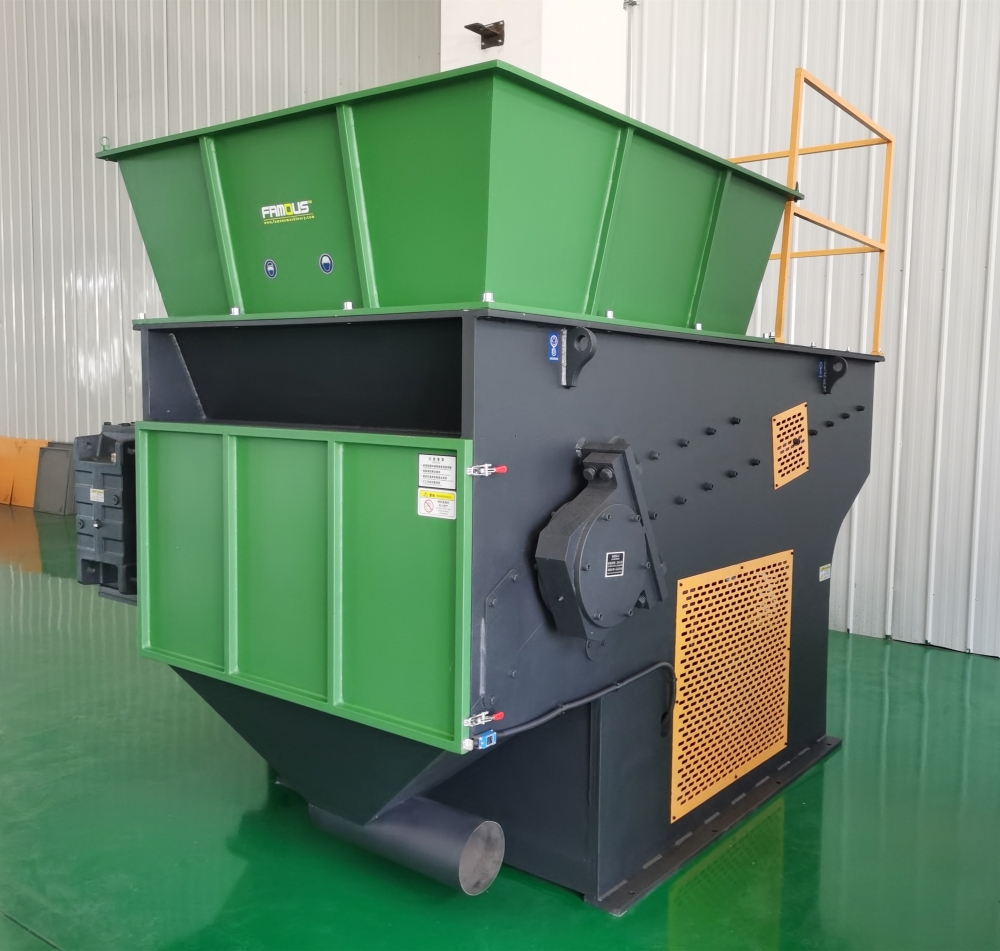

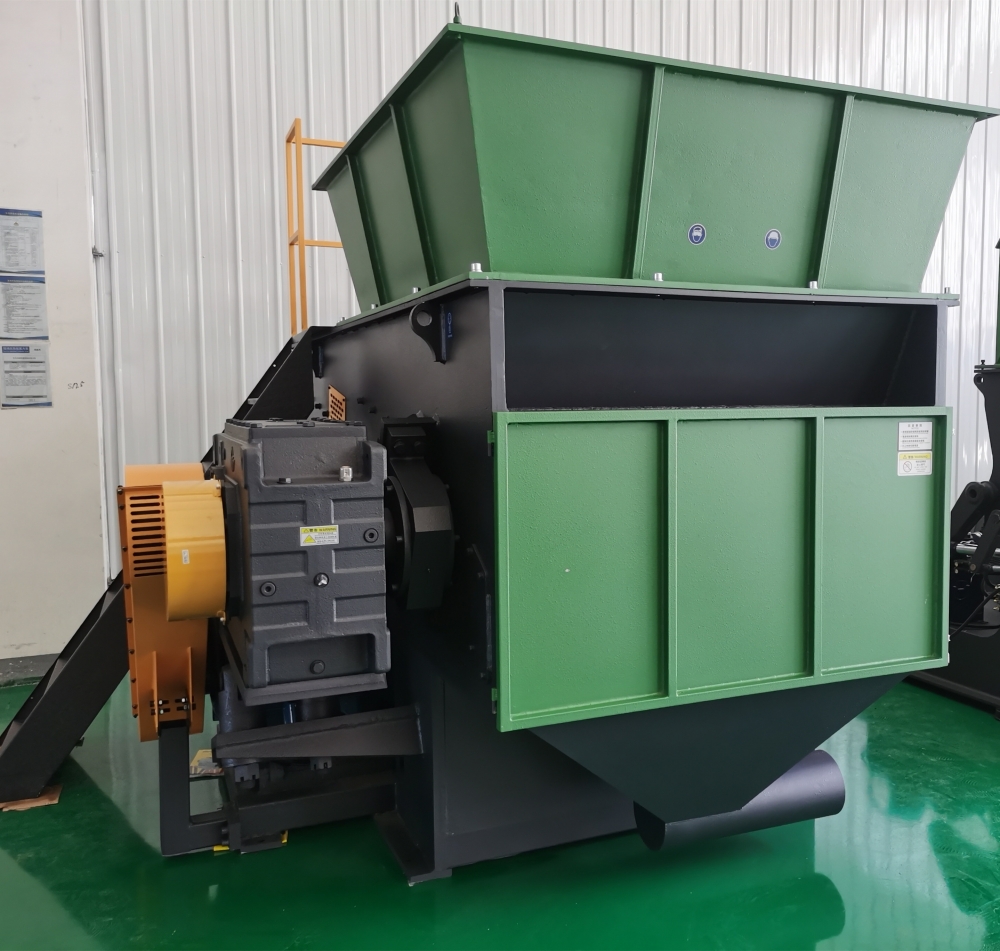

Single Shaft Shredder Machine (Soft & Rigid Materials)
The SXR series single shaft shredder is suitable for recycling wide range of materials. It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials. As per our customers' requirements, such as the input size of the material, capacity and the final output size etc, we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming. The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION
Rotary shaft: The rotary shaft made by high quality carbon steel, anti-worn
Rotor blade: The rotor blade made by D2, fixed on the blades holder by screw easy to remove and maintenance, blade can use 4 times when the blade worn after using long time
Fixed Blade: The fixed blades are movables to adjust and longer time use . Using D2 material, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC53 material.

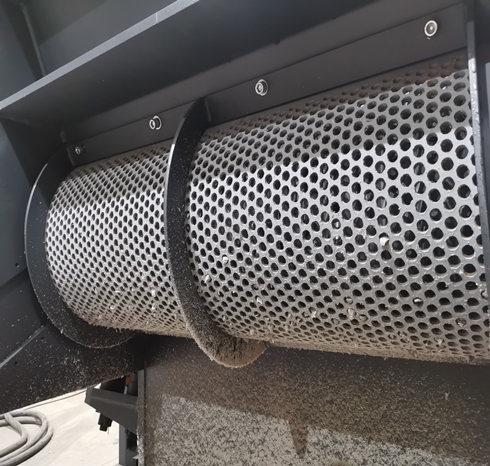

Screen: the screen use 10mm thickness carbon steel made, with 40-100mm screen, the flakes will easy shredding and down
Hydraulic pump station: Oil cylinder effective working. Pushing speed is adjusted by manual
Contactors: Use Siemens/Schneider brand in us control system

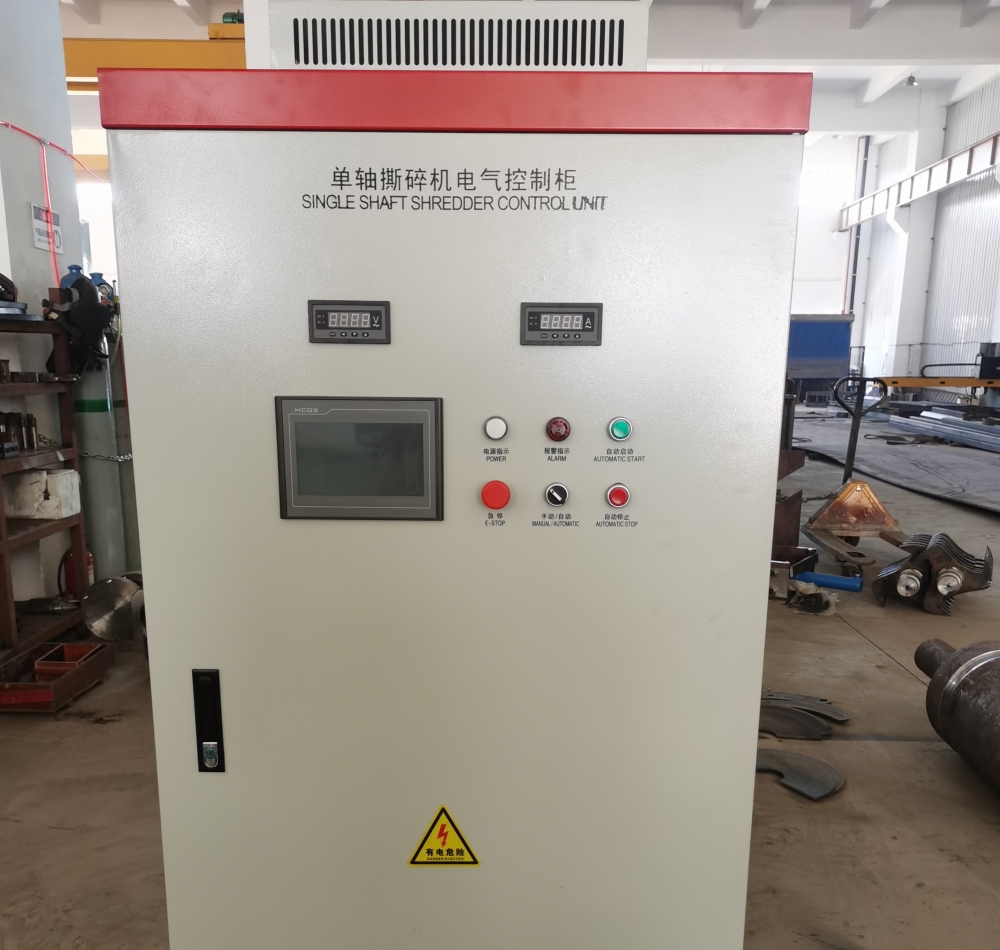

PLC: Use Siemens PLC for shredder machine. Automatic control rotor shaft positive, negative rotary
APPLICABLE MATERIALS
-
WASTE PLASTICS
PPR PIPE
HDPE INJECTION
-
ABS LUMP
HDPE PIPE
-
PP PE PURGING
PET FIBER
-
PP PE FILMS
PP BAGS
PRODUCT FEATURES

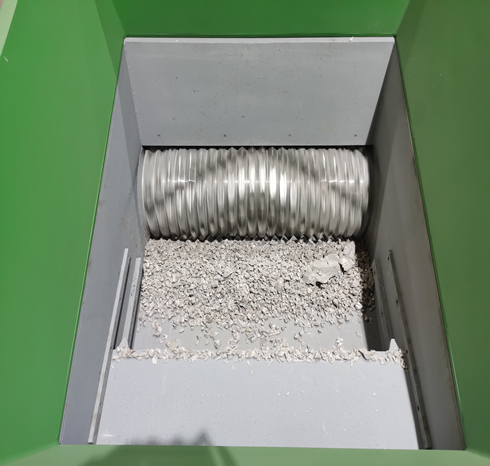

Shredding Process:
1. The hydraulic ram pushes the material against the rotor at a pre-set speed.
2. The material is shredded by the rotor teeth.
3. The hydraulic ram maintains the pressure against the rotor, maximizing output of shredded material.
SPECIFICATIONS
Model |
|
|
|
|
|
|
|
SXR600 | 22 | Φ300 | 82 | 33 | 1 | 2.2 | 2300 |
SXR800 | 37 | Φ400 | 90 | 56 | 2 | 3 | 3800 |
SXR1000 | 55 | Φ460 | 87 | 64 | 2 | 5.5 | 4500 |
SXR1200 | 75 | Φ460 | 87 | 72 | 2 | 7.5 | 6500 |
SXR1500 | 90 or 110 | Φ460 | 87 | 88 | 3 | 11 | 8000 |
* Note: The above technical parameters are only for your consideration, real technical parameters of crusher machine will be different based on crushing different material requirements, please call us for more information before purchasing.
