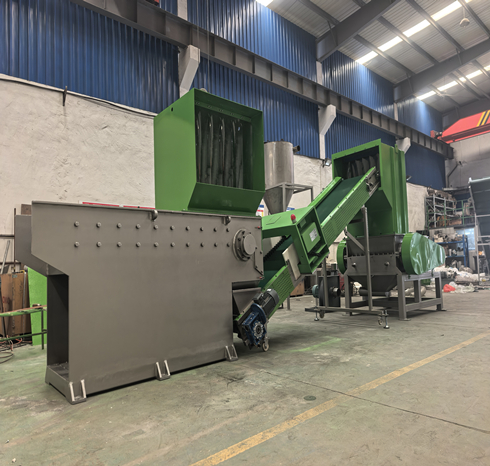

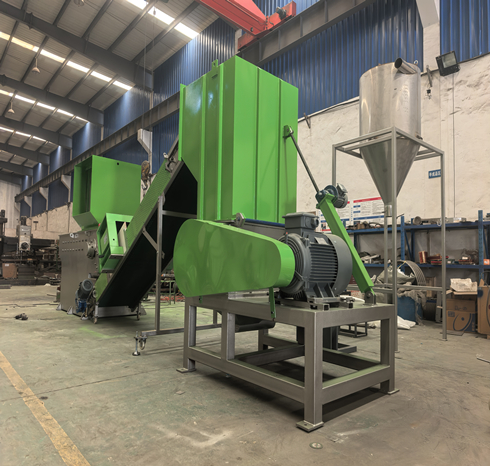

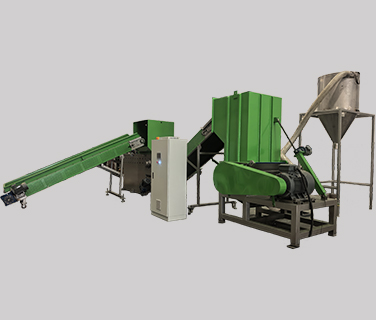

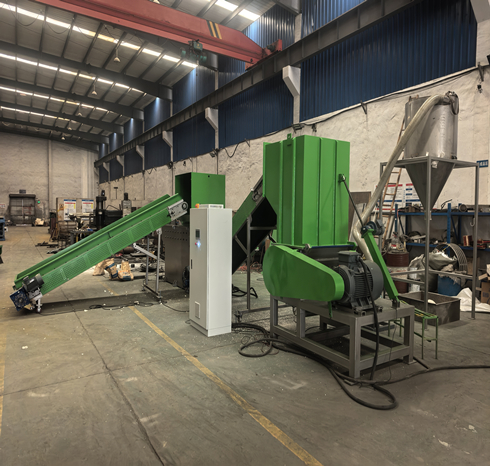

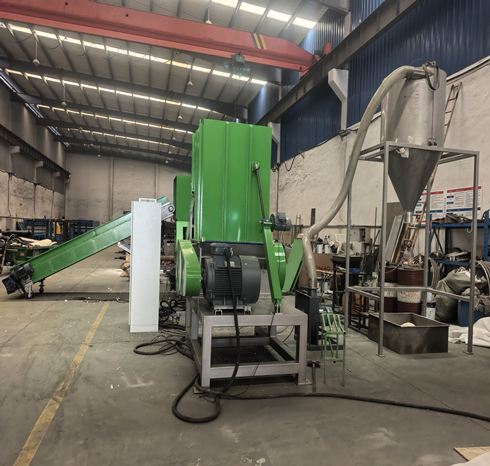

Plastic Shredder And Crusher Line
This shredder and crusher line machine is our company new design. raw material goes into crusher machine after single shaft shredding machine. It used for the die material, big block material, plastic pipe, wood, barrel and other plastic material. It can reduce the pressure of the shredder machine, prolong the blades service life. After second crusher, the material can be crushed into smaller pieces and increase the final output.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION
This machine can shred plastic lumps, barrels, pipes, wood, wood pallet, big block material, plastic container, plastic chair, plastic pallet, woven bags, jumbo bags, cable etc.
APPLICABLE MATERIALS
-
WASTES
PRODUCT FEATURES
1. Safety Devices in line with CE certification.
2. The hydraulic pusher against the rotor.
3. Various Screen size for different material.
4. Various Rotating blade for processing different material. Blades are made from hardened SKD-11 steel. The Blades can be turned 4 times before it damaged.
5. Absorbs vibrations caused by the shredding of the material. this protects the machine and all parts in the machine.
6. Protective bearing covers to avoid dust, waste powder entering the bearing house, also grease points to release oil at intervals to increase service life.
7. The Hydraulic ram pressure and timing can be adjusted to fit with different material. The machine can be fitted with blower and silo.
SPECIFICATIONS
| Model | Stationary Blades | Rotating Blades | Chamber Dimension | Power | Mesh Size |
|---|---|---|---|---|---|
| XNC600 | shredder(2pcs)+crusher (4pcs) | shredder(30pcs)+crusher(3*5pcs) | 280 mm | 22kw+22kw | 8-16 mm |
| XNC800 | shredder (2pcs)+crusher (4pcs) | shredder(33pcs)+crusher(3*8pcs) | 420 mm | 45kw+45kw | 8-16 mm |
| XNC1000 | shredder (2pcs)+crusher (4pcs) | shredder(42pcs)+crusher(3*2pcs) | 420 mm | 55kw+55kw | 8-16 mm |
| XNC1200 | shredder (2pcs)+crusher (4pcs) | shredder(50pcs)+crusher(5*2pcs) | 420 mm | 75kw+75kw | 8-16 mm |
* Note: The above technical parameters are only for your consideration, real technical parameters of crusher machine will be different based on crushing different material requirements, please call us for more information before purchasing.
