Plastic Shredder And Crusher Two In One Machine
This shredder and crusher two in one machine is our company new design. raw material goes into crusher machine directly after shredding by single shaft shredding machine. It used for the die material, big block material, plastic pipe, wood, barrel and other plastic material. By this method, customer no need to buy belt conveyor between these two machines, so it will save cost.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION

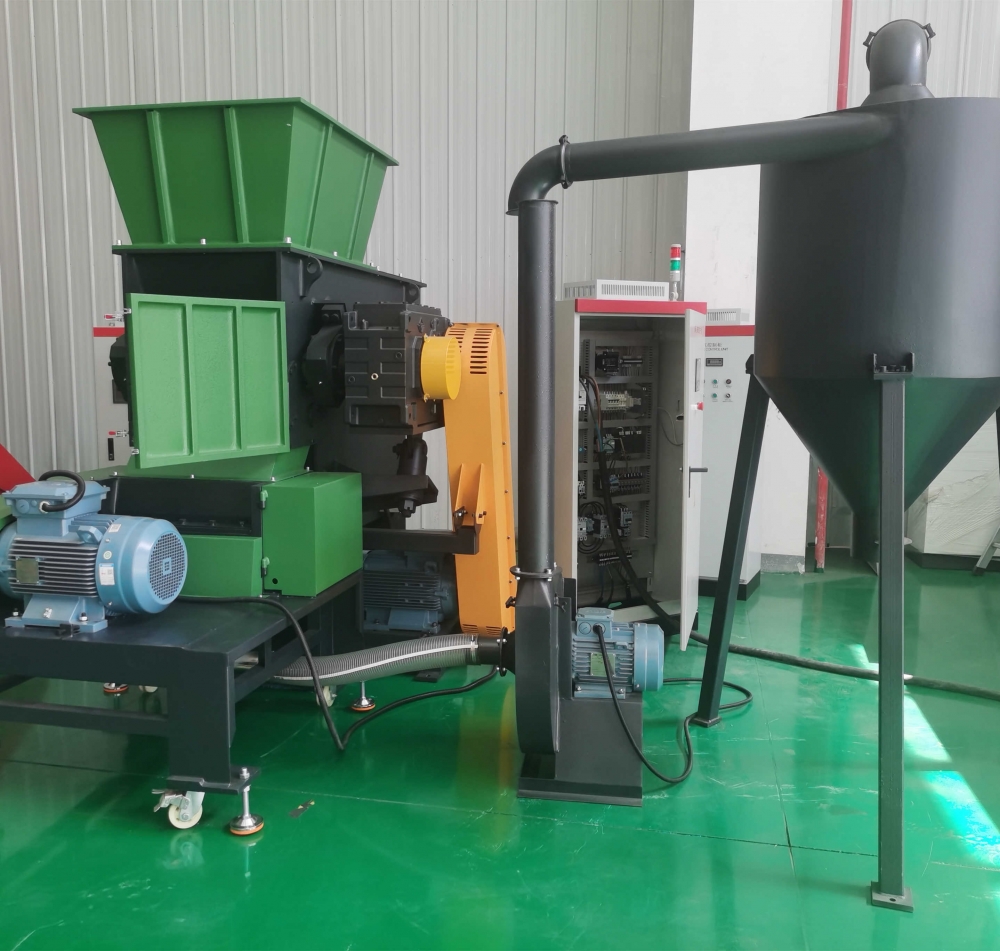

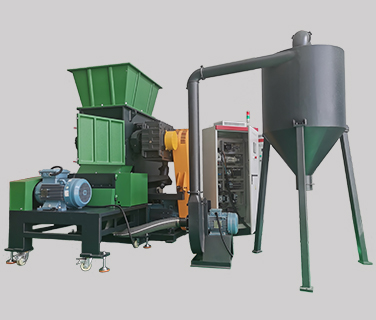

waste plastic shredder and crusher in one machine has two parts in one machine, one is shredding part on the top for coarse crushing, the other one is crushing parts under the shredding part for fine crushing to get 8-16mm particle materials. It is an efficient recycling machine for recycling the waste plastics, for example, plastic lumps from injection or extrusion machine, plastic pipes, plastic bottles, plastic baskets, plastic shells of household appliances (e.g. TV, computer, refrigerator, washer machine, etc), and so on.
APPLICABLE MATERIALS
-
WASTES
PRODUCT FEATURES
This machine can shred plastic lumps, barrels, pipes, wood, wood pallet, big block material, plastic container, plastic chair, plastic pallet, woven bags, jumbo bags, cable etc.
1. Safety Devices in line with CE certification.
2. The hydraulic pusher against the rotor.

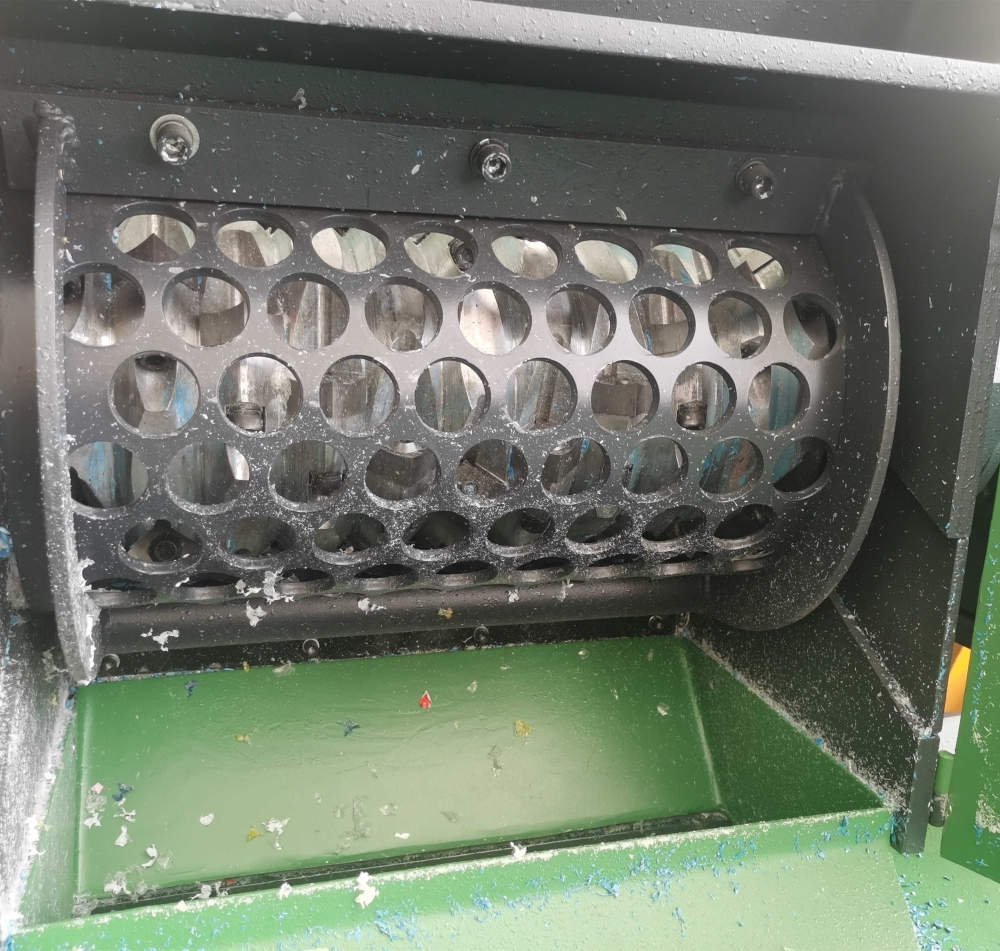

3. Various Screen size for different material.

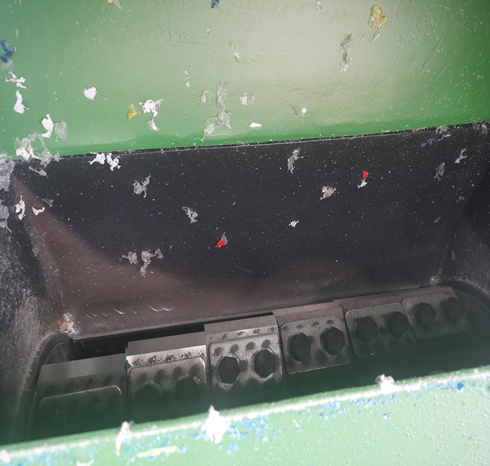

4. Various Rotating blade for processing different material. Blades are made from hardened SKD-11 steel. The Blades can be turned 4 times before it damaged.
5. Absorbs vibrations caused by the shredding of the material. this protects the machine and all parts in the machine.
6. Protective bearing covers to avoid dust, waste powder entering the bearing house, also grease points to release oil at intervals to increase service life.
7. The Hydraulic ram pressure and timing can be adjusted to fit with different material. The machine can be fitted with blower and silo.
SPECIFICATIONS
Model | Fixed Blades | Rotating Blades | Chamber Dimension | Power | Mesh Size |
---|---|---|---|---|---|
XRU600 | shredder(2pcs)+crusher (2pcs) | shredder(30pcs)+crusher(3*5pcs) | 280 mm | 22kw+18.5kw | 8-16 mm |
XRU800 | shredder (2pcs)+crusher (2pcs) | shredder(33pcs)+crusher(3*8pcs) | 400 mm | 45kw+30kw | 8-16 mm |
* Note: The above technical parameters are only for your consideration, real technical parameters of crusher machine will be different based on crushing different material requirements, please call us for more information before purchasing.
