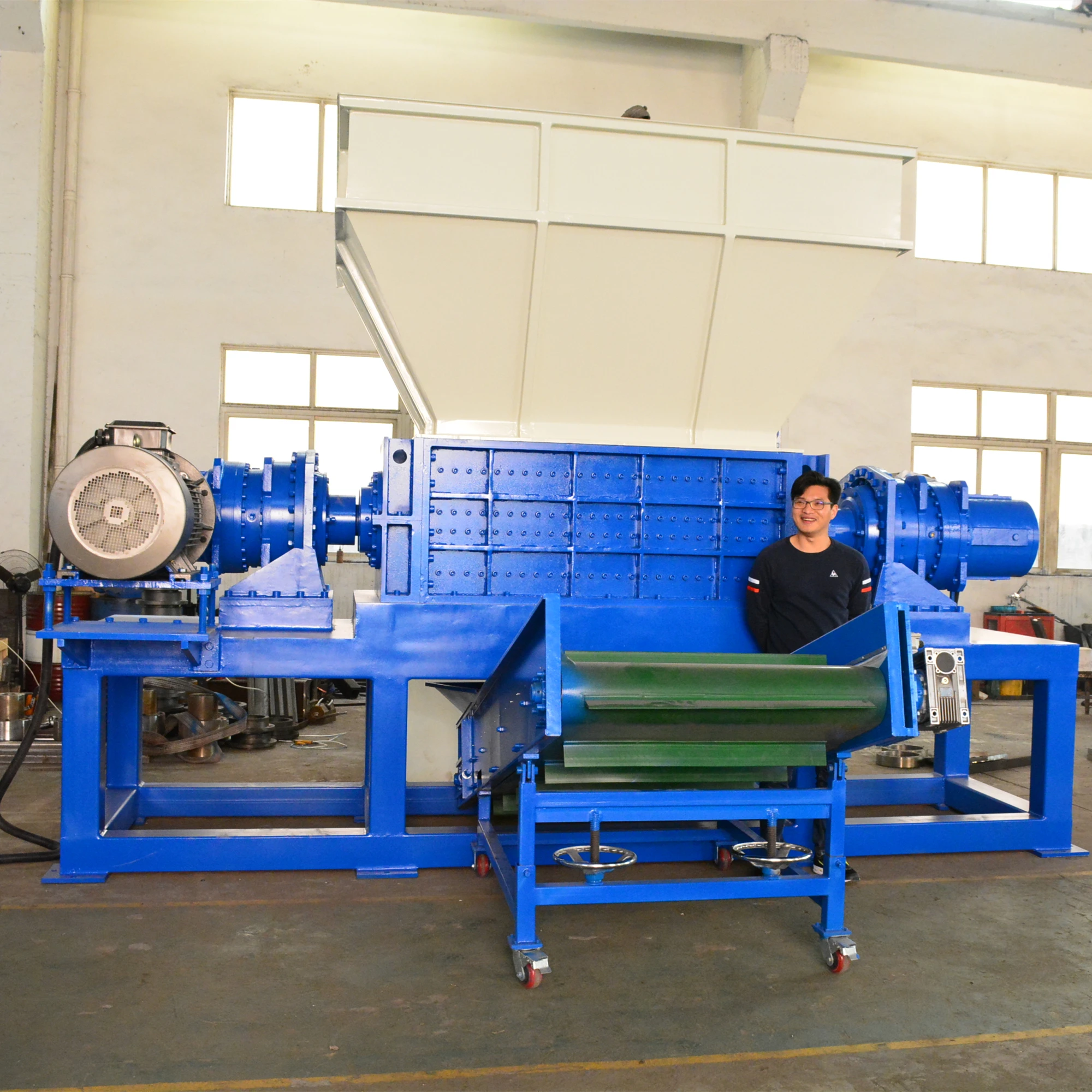

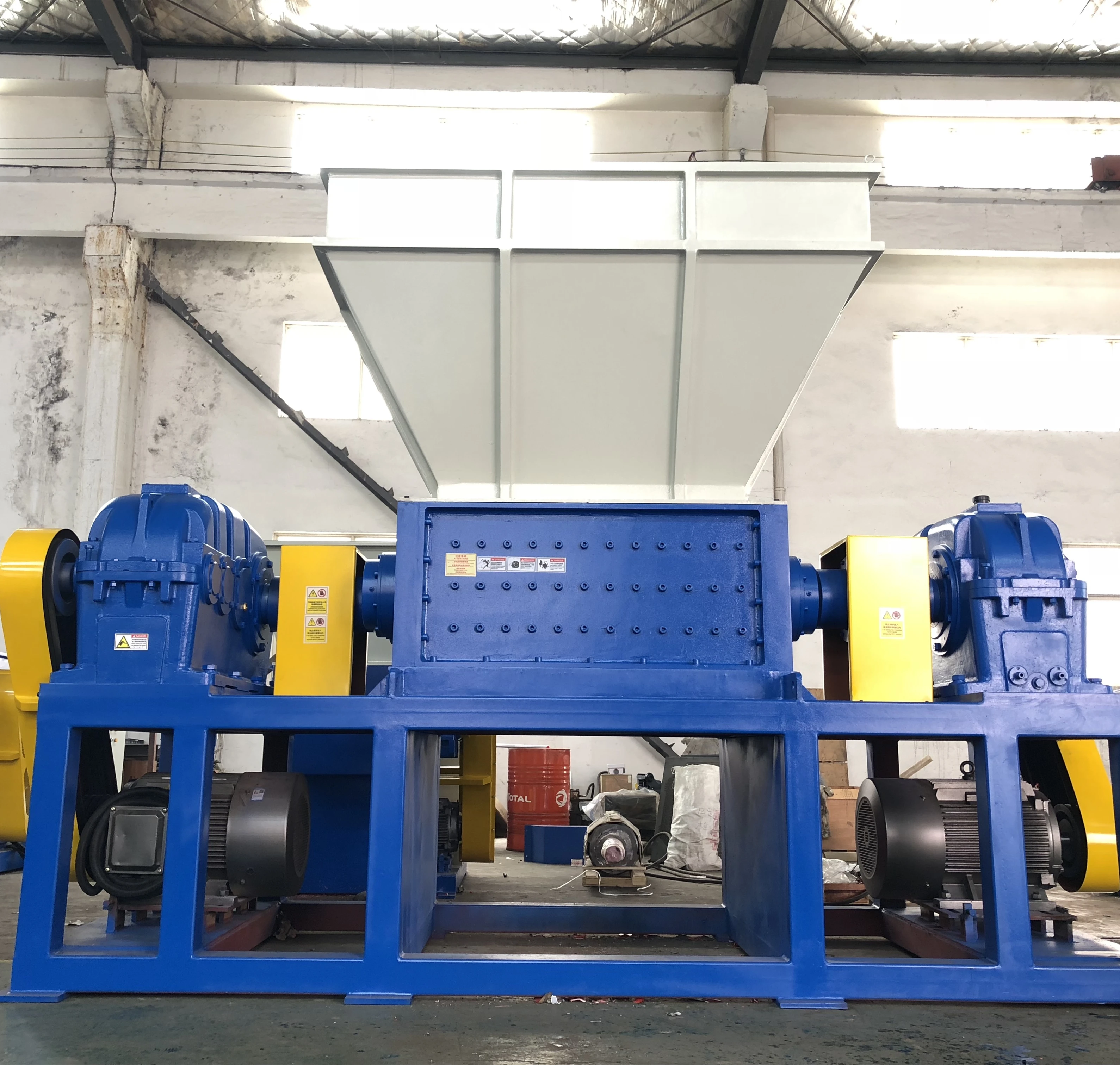

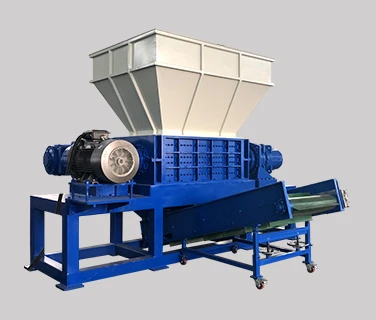

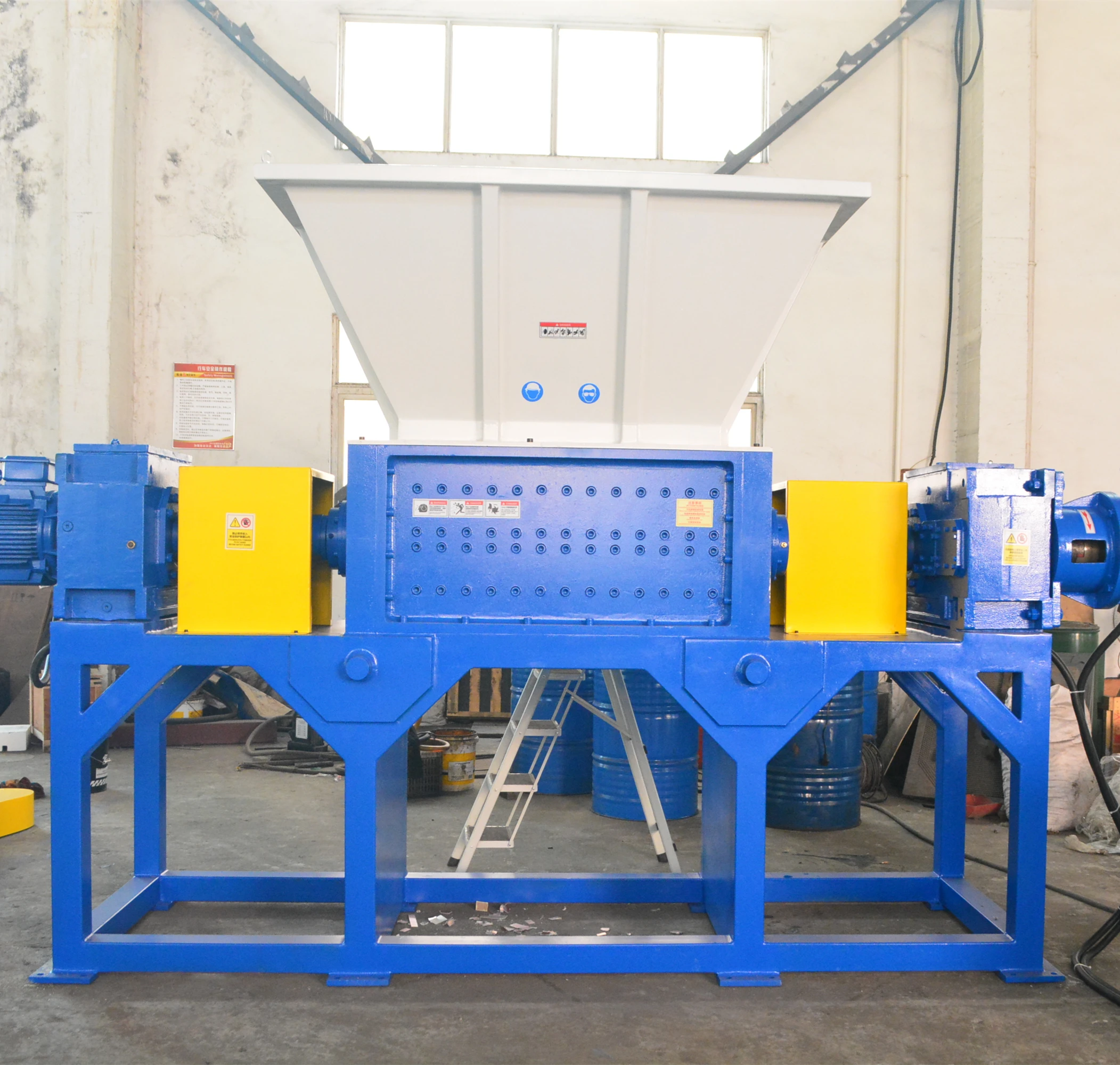

Double Shaft Shredder Machine
The FXD series double shafts shredders have been designed for a wide way of applications and industries, such as: shredding WEEE waste, scrap tires, packaging barrel, pallets, etc. Depending on input materials and the following process the shredded material can be used directly or go into the next step of size reduction. XD's serious double shaft shredder has two rotors built into the machine that rotate at low speeds, high torque and low noise. Adopt with microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming. Based on different materials, we design the special blades with different hooks, normally, we have single hooks blade, double hooks blades, four hooks blades and multi-hooks blades. Also the thickness of blades for different materials are different, the range is 10mm-80mm. We design single or multi-hooks of blades with different thickness for different materials.
After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION
Shredding chamber: Using high quality carbon steel making,running no shake.
Assembling blades: It is easy and quick to replace the blades.
Rotary shaft: The rotary shaft made by high quality carbon steel, anti-worn.
Blade Spacer: Use High quality carbon steel making

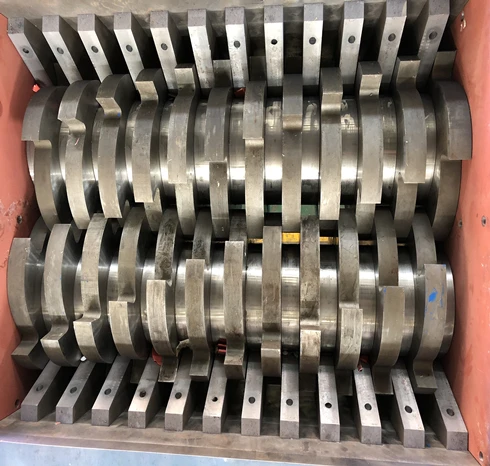

Rotary Blade: Using D-2 material, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC-53 material.
Contactors: Use Siemens/Schneider brand in us control system.
PLC: Use Siemens PLC for shredder machine. Automatic control rotor shaft positive, negative rotary.
APPLICABLE MATERIALS
-
WASTES
PRODUCT FEATURES
Shredding Process:
1. Feed the material to the rotor which is setted a appropriate rotary speed.
2. Materials are grabbed by the blades.
3. Continued shredding and maximize the capacity.
SPECIFICATIONS
Model |
|
|
|
|
|
|
|
FXD600 | 11+11 | Φ280 | 16 | 20 | 20 | 5-13 | 2850 |
FXD800 | 15+15 | Φ280 | 16 | 20 | 20 | 5-13 | 3400 |
FXD1000 | 22+22 | Φ400 | 16 | 20 | 20 | 5-21 | 4500 |
FXD1200 | 37+37 | Φ440 | 16 | 24 | 24 | 5-21 | 7600 |
FXD1500 | 55+55 | Φ500 | 16 | 30 | 30 | 5-21 | 11500 |
* Note: The above technical parameters are only for your consideration, real technical parameters of crusher machine will be different based on crushing different material requirements, please call us for more information before purchasing.
