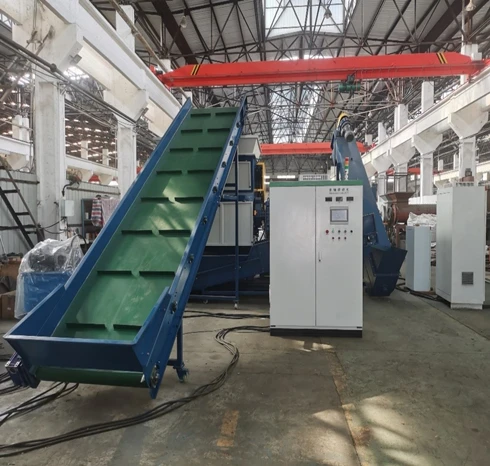

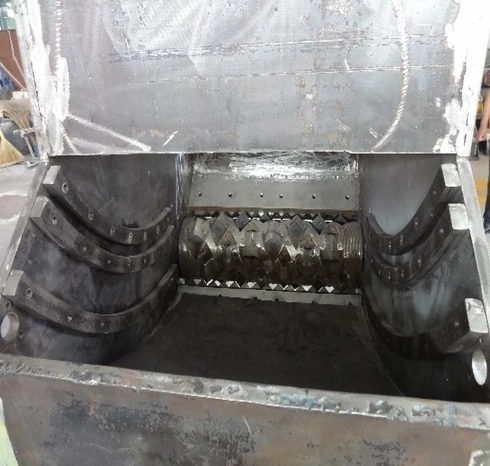

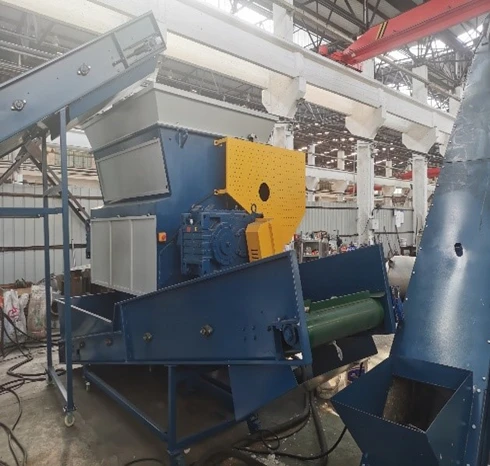

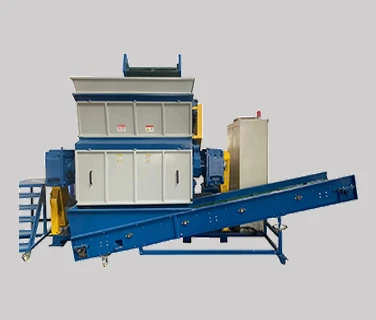

This swinging arm/rock arm single shaft shredder machine is specially designed by our company. It is with good shaft structure design; the big scale materials put into the shredder chamber are pushed by arc moved pushing plate driven by hydraulic, which has a relative low noise and large capacity. This plastic shredder machine mainly deal with bundles of plastic PE PP film, packaged PP woven bag, plastic bales, etc.

Product Specifications:
  • MODEL

    YXR SERIES

  • CAPACITY

    1000-2000kg/h

Inquiry
  • Product Description
  • Applicable Materials
  • Product Features
  • Specifications
  • Machine Video

PRODUCT DESCRIPTION

This swinging arm/rock arm single shaft shredder machine is specially designed by our company. It is with good shaft structure design; the big scale materials put into the shredder chamber are pushed by arc moved pushing plate driven by hydraulic, which has a relative low noise and large capacity. This plastic shredder machine mainly deal with bundles of plastic PE PP film, packaged PP woven bag, plastic bales, etc.

APPLICABLE MATERIALS

  • WASTE

PRODUCT FEATURES

1. With good shaft structure design, stable running, low noise, durable use.

2. The machine is controlled by SIEMENS PLC system, it will automatically reverse to protect the machine against overload and jamming, which is very safe to operate.

3. With pneumatic buffer rod for unbolting the brackets saving labor cost.

4. Blades are fixed on the shaft by screw which is convenient and simple to change.

5. Every rotary blades has four cutting edges, it can be rotated diagonally continue to use if worn.

6.This machine was used to shredder plastic film, plastic bags, plastic barrel, plastic bucket, plastic crates, waste fibers, etc.

7.This machine is single shaft shredder machine.

8.Blade material made by SKD11 or D2, it has a good life and durable in using, blade fixed by holder, when worker maintaining the shredder machine, it is easy to change blade.

9.Use WEG or Siemens beide motor, NSK/SKF bearing.

10.With hydraulic system to feeding materials.

SPECIFICATIONS

Model

Motor (kw)

Rotor revolving diameter
(mm)

Rotating Knife (pcs)

Fixed Knife (pcs)

Hydraulic Motor power (kw)

YXR1200

75

Φ480

70

3

5.5

YXR1500

90

Φ480

102

3

5.5

YXR1800

55+55

Φ480

132

3

5.5

YXR2000

75+75

Φ480

144

3

5.5

* Note: The above technical parameters are only for your consideration, real technical parameters of crusher machine will be different based on crushing different material requirements, please call us for more information before purchasing.
