EPE EPP XPS Melting Machine
EPE EPP XPS melting machine is a foam recycling machine, which can crush the waste foam materials into small pieces by the blades and screw, and then it could be easily compressed into tight foam ingots at a ratio of 90:1. After compaction, the waste foam can be reused to make other products, such as frame products and construction moldings. In addition, the applicable materials also include XPS, EPP, EPE, food trays and cups. Our foam recycling machine is able to eliminate all your waste foam recycling concerns. Foam hot melt densifier machine to reduce the size of expanded polyethylene, expanded polystyrene foam and expanded polypropylene foam for easier transportation. It is also called foam densifier and foam compactor. It is widely used in sea food processing plant, electronic factories, extrusion industry, packaging industry, construction industry, agriculture industry, etc.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video

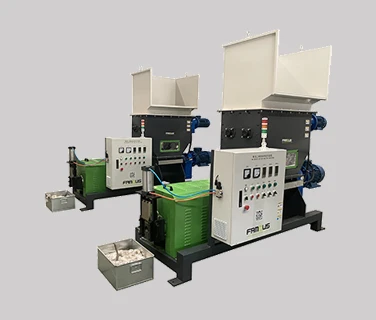

PRODUCT DESCRIPTION

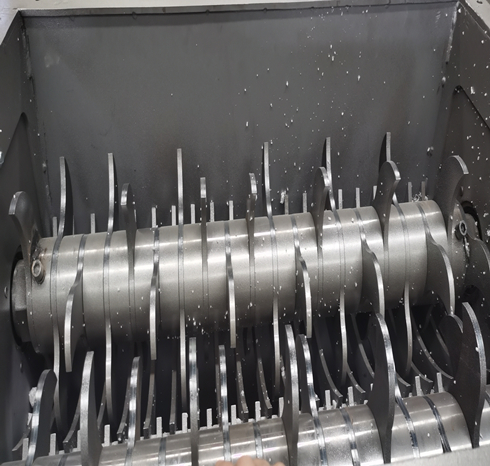

This equipment is designed to solve the volume reduction problem of dry foamed foam waste through crushing, hot melting and extrusion molding. The machine is simple in design, compact in structure and low in maintenance cost. When the crusher blade is working, it is broken into smaller pieces by cutting the blade. Furthermore, the crusher blades have a detachable, dual-shaft structure. The material will be pushed to the heating cylinder by a high-speed rotating screw. The screw of the host machine can transport and heat the material to reach a hot melt state, and then extrude and cut it into pieces using a pneumatic cutter, making it more convenient for storage and transportation.
APPLICABLE MATERIALS
-
POLYSTYRENE
XPS INSULATION BOARD
XPS EXTRUDED POLYSTYRENE BOARD
-
POLYETHYLENE
EPE
EPE ROLL/ EPE SHEET
-
POLYPROPYLENE
EPP
EPP BOARD
PRODUCT FEATURES
1. Screw melting technology, with a ratio of 90:1, continuously hot melt 40 high containers can load 25 tons of high-density hot melt material.

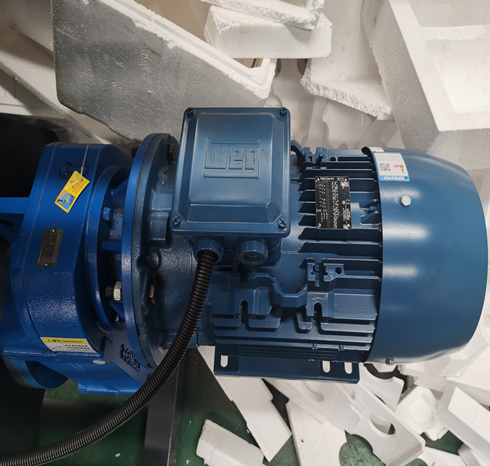

2. High quality accessories: Selected Siemens ensures safe and reliable machine operation with a long service life.
3. The machine has CE & RoHS certification.

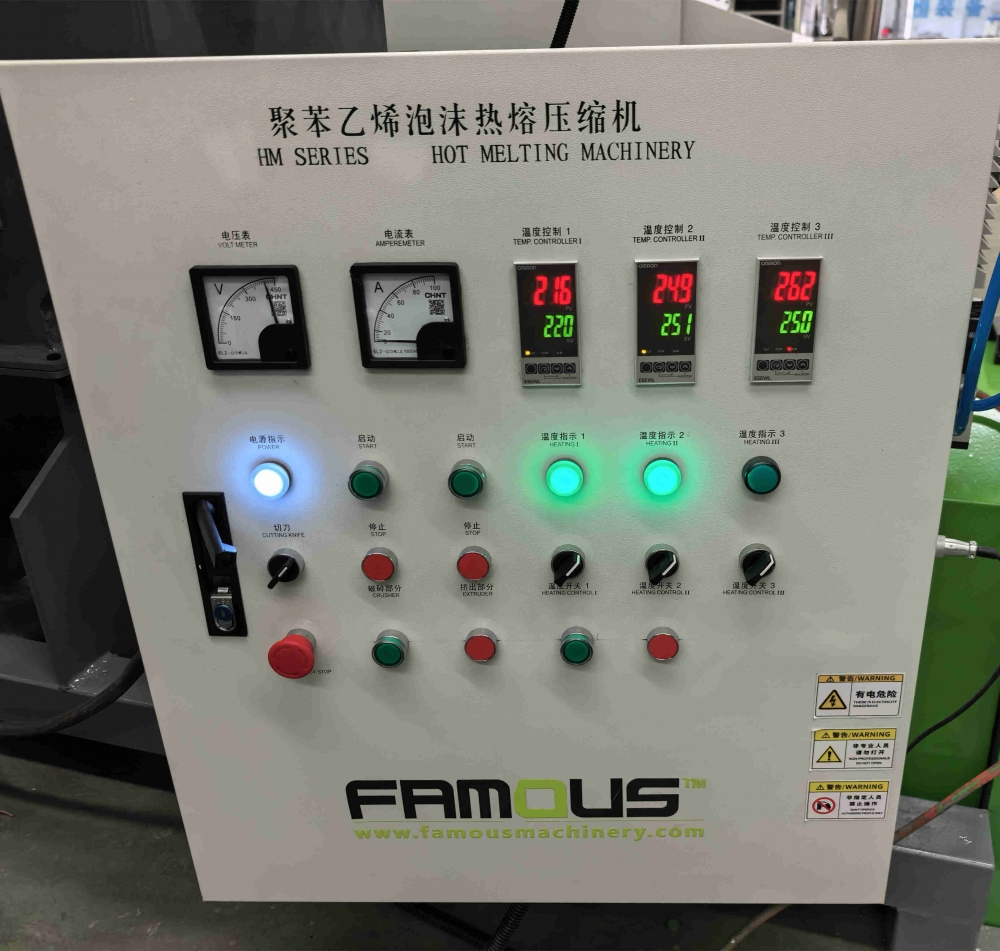

4. Three stages of temperature control to whiten the output color of the hot melt material as much as possible.
5. Simple operation, no additional steps required during operation, only start and stop operations.
6. Foam waste is not easy to blow out and disperse to the ground during machine operation.
SPECIFICATIONS
| Model | FHM200E | FHM400E |
|---|---|---|
| Feeding size | 1200*600mm | 1400*600mm |
| Screw diameter | φ190-120 mm | φ190-120 mm |
| Screw speed | 110 r/min | 110 r/min |
| Heating power | about 20kw | about 20kw |
| Main Motor power | 22kw | 30kw |
| Crusher motor power | 4kw*2sets | 5.5kw*2sets |
| Crusher blades quantity | about 38sets | about 48sets |
| Machine weight | 1500kg | 2200kg |
| Capacity | about 150-200kg/h | about 200-250kg/h |
