Small EPS Foam Melting Machine
This high efficient mini styrofoam melter machine adopts manual feeding, the material will be crushed by the single shaft blades and conveyed to the barrel of the main machine through the screen. This screw of the main machine can convey and heat the material to melt condition, then extrude them to pieces for easy storage and transportation.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION

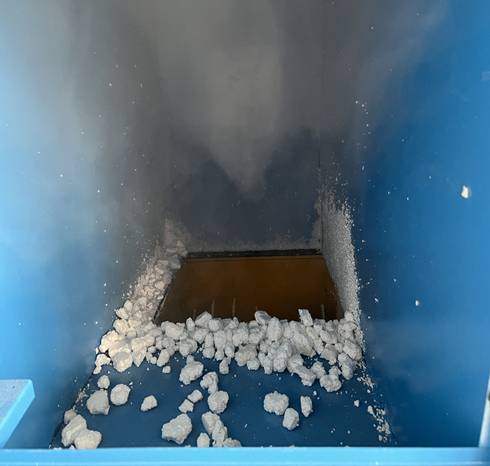

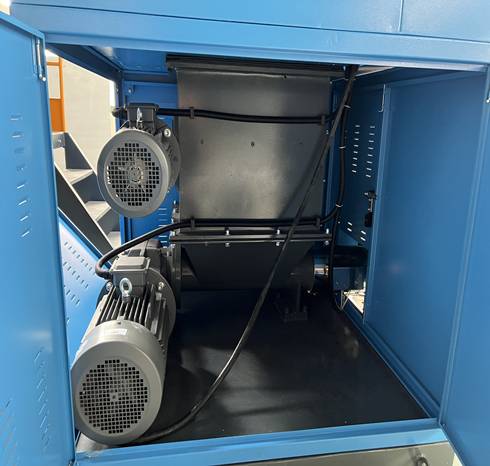

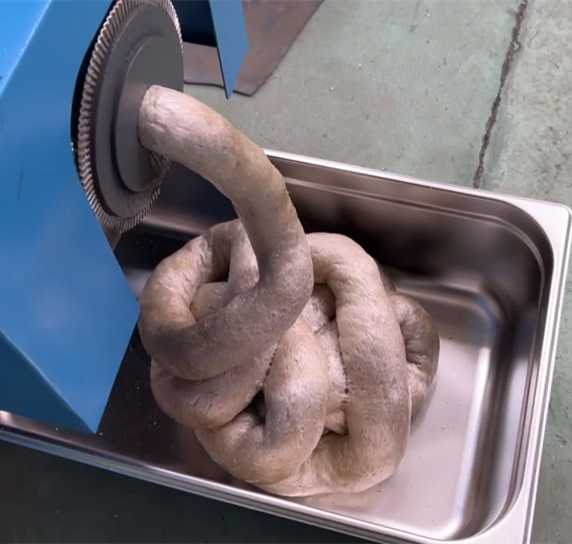

This FHM100A EPS hot melting machine can process EPS EPP EPE foam waste, include the food trays, cups and fast food boxes, package materials. This EPS hot melting machine is suitable for the small space and capacity. We make a door which can prevent the material from coming out of the crushing chamber. Also the hopper is not high, it is easy for the people to feed the material. After crushing, the material will enter the barrel in small pieces. Then the material will be extruded by the screw. In the front of the barrel , there are two ceramic heaters to melt the material. The material will be discharged in the form of molten strips.
The density of the block can reach 500-600kg per cubic meter. One container can load more than 20 tons material.
This small hot melter is often used in the supermarket, seafood market, hotels and community.
The machine can be equipped with movable wheels and can be easily moved to any place.
APPLICABLE MATERIALS
-
POLYSTYRENE
EPS/ EPS DUST
EPS CUPS&TRAYS/ XPS
-
POLYETHYLENE
EPE
EPE ROLL/ EPE SHEET
-
POLYPROPYLENE
EPP
PRODUCT FEATURES
1) Screw heating melting compression technology, max compression ration reach 90:1
2) Screw barrel each heating zones be controlled independently, more precise temperature controlling, ensure better quality EPS blocks
3) Reasonable designed operation panel, makes the operation be easy and convenient
4) All parts are Omron, Siemens, Schneider, etc international brands, quality reliable & durable.
5) Suitable for different types and conditions EPS, EPE,XPS, EPP, widely used
6) We can make customized foam recycling scheme for different applications customers
SPECIFICATIONS
Model | FHM100A or FHM100B | FHM200 | FHM400 |
---|---|---|---|
Feeding size | 560*400mm | 900*600mm | 1000*900mm |
Screw diameter | φ138 mm | φ190-120 mm | φ190-120 mm |
Screw speed | 150 r/min | 150 r/min | 150 r/min |
Heating power | 3kw | 10kw | 10kw |
Main Motor power | 7.5kw | 15kw | 22kw |
Crusher motor power | 3kw | 3kw*2sets | 3kw*4sets |
Crusher blades quantity | about 9sets | about 18sets | about 36sets |
Machine weight | 900kg | 1500kg | 2200kg |
Capacity | 40-50kg/h | 80-100kg/h | 150-200kg/h |
