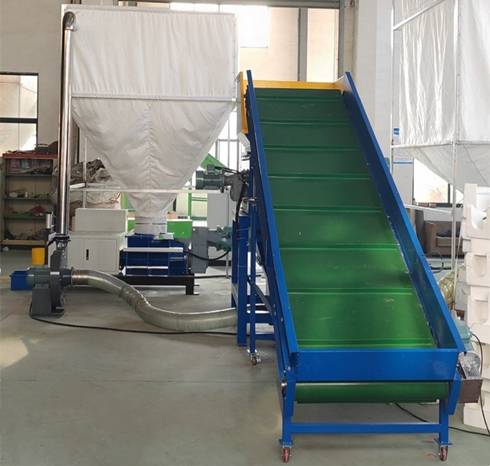

Styrofoam Melting Machine With Silo System
This production line is designed to reduce the volume of foam waste through conveying, crushing, air blower, storage, thermal melting and extrusion molding.

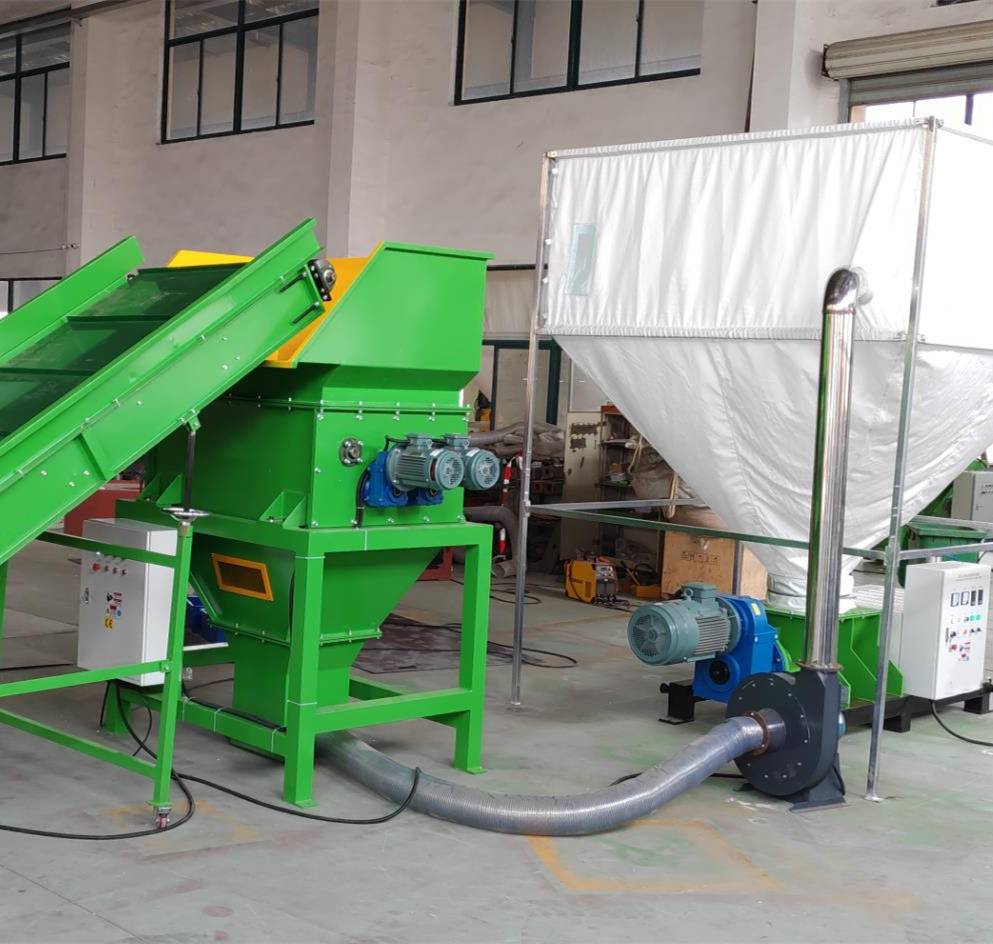

For the crusher part, we use four shafts crusher on this type of machine, two shafts is welded by 9 sets of blades, and the other two are welded by 10 sets of blades. Each blade is interlaced in different angle. This design can make the blades to grab the material, and force the material going to the screw, and the material will not rebound back from the hopper, four shafts are driven by four gearbox separately. There is also a screen at the bottom of the crusher chamber to filter the material, this design of blade can crush the EPS, EPE, EPP, XPS…...most of the foam material can be crushed by this unit.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION
After the crusher, the material will go down into the barrel, and in the barrel there is a conical screw, with this design, the material can be melted well than the other screw. There are three ceramic heaters on the screw, each heater separate into two parts, one parts is broken the other is still working.
The heaters can be used for a long time, and in the mold head there are two heating rods which is made by stainless steel. The mold can be open when the user finish one shifting working, it is very convenient for the user to clean the material in the mold head. Also there is a steel cover at the head of the mold to prevent the worker's hand touching the melted material.
APPLICABLE MATERIALS
-
POLYSTYRENE
EPS/ EPS DUST
EPS CUPS&TRAYS/ XPS
-
POLYETHYLENE
EPE
EPE ROLL/ EPE SHEET
-
POLYPROPYLENE
EPP
PRODUCT FEATURES

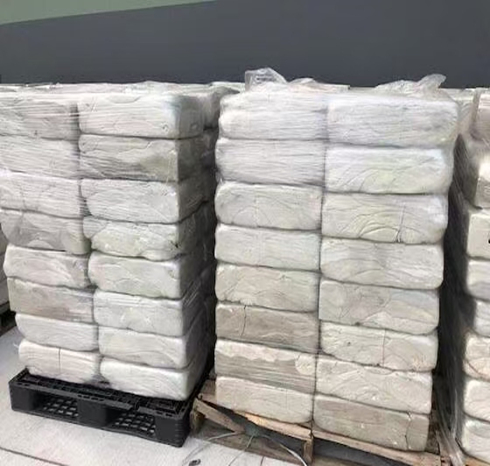

1) Screw melting technology, with the ratio of 90:1, continuously hot melting ingot material outlet, 40 high containers can carry 25 tons of high-density hot melt ingot.
2) High-quality accessories: select Siemens to ensure safe and reliable operation and long service life of the machine.
3) The machine has CE and RoHS certificates.
4) Three zones temperature control to whiten the output color of hot melt as much as possible.
5) The operation is simple. No additional steps are required during operation, only start and stop operation.
6) Comply with 5S standard, foam waste is not easy to blow out and disperse to the ground during machine operation.
SPECIFICATIONS
| Model | FHML400A |
|---|---|
| Screw Diameter | φ200mm |
| Input size | 1000mmx900mm |
| Screw rotation speed | 150rpm |
| Crusher blades | about 36sets |
| Blade rotation speed | 110rpm |
| Conveyor motor power | 1.5kw |
| Main motor | 22kw |
| Crusher motor | 3kw*4sets |
| Blower motor power | 5.5kw |
| Heating power | about 10kw |
| Size L*W*H | 6060x6000x4090mm |
