Polystyrene Foam Melting Production Line

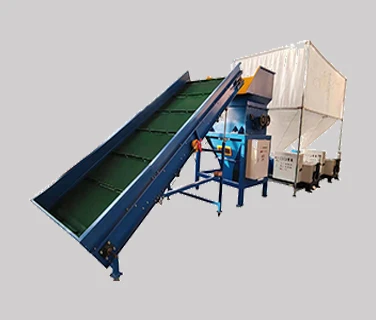

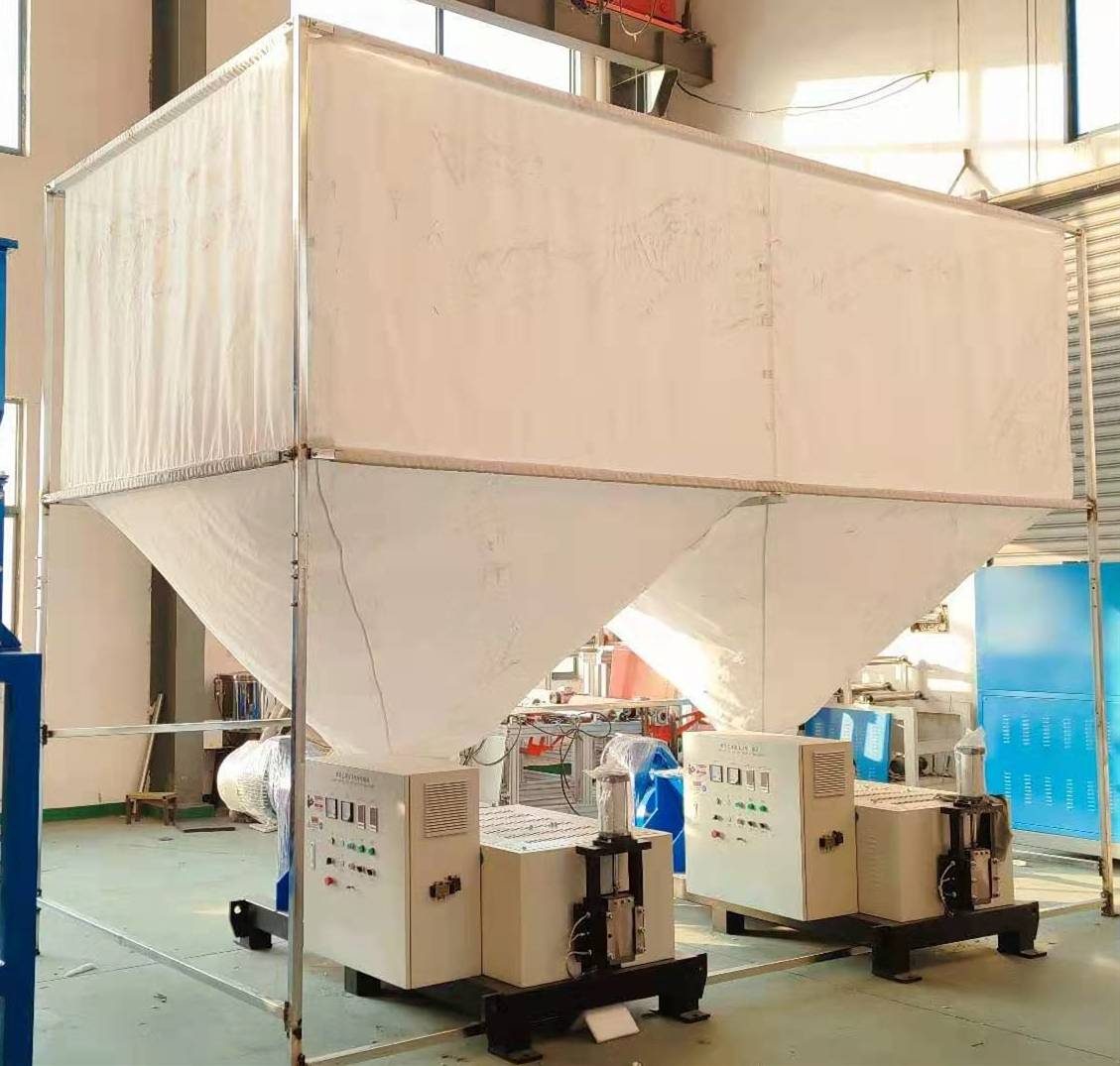

The FHML400B eps hot melting line adopt the conveyer belt, air blower and silo system to increase the capacity of the line.
High capacity styrofoam hot melting production line is a machine to reduce the size of expanded polystyrene foam and expanded polypropylene foam for easier transportation. It is also known as EPS melter and EPS densifier. It is widely used in large recycling center, big distribution center, sea food processing plant, and electronic factories. Styrofoam densifier makes it profitable for municipalities and businesses to recycle EPS.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION
The four shaft crushing blades are 4 parallel blades shaft with different rotating direction, each blade shaft has around 10pcs of blades and driven by the gear box to crush material that will be conveyed to the barrel through the screen. The material will be sent by the high speed rotary screw to the heating barrel. Then they will be melted under high temperature extruded to expected shapes.

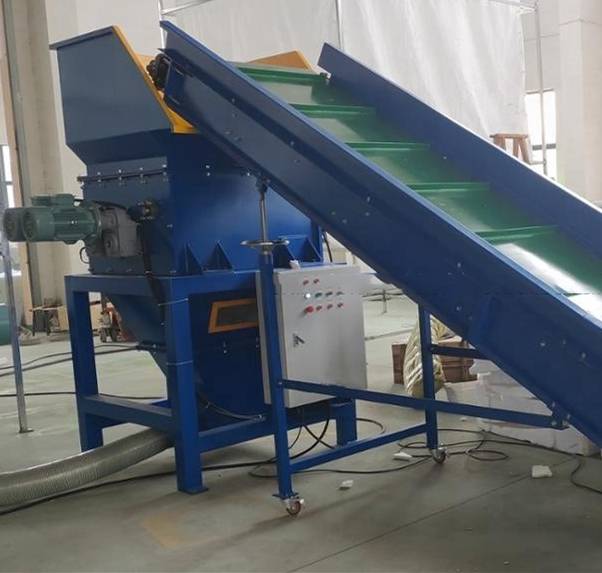

The tilted feeding hopper is easy to put the EPS material in, and the material won't be pushed out during the crushing process. The EPS hot melting machine use twin or four shaft crushing blades, 4 parallel blade shafts symmetrically fixed with blade, the blade on the shafts is dislocation arrangement, and the blade of each shaft is evenly arranged in the axis of the knife with arithmetic point of view in the same direction. The first blade and the last blade of each shaft has a 90°angle.
APPLICABLE MATERIALS
-
POLYSTYRENE
EPS/ EPS DUST
EPS CUPS&TRAYS/ XPS
-
POLYETHYLENE
EPE
EPE ROLL/ EPE SHEET
-
POLYPROPYLENE
EPP
PRODUCT FEATURES
1) Simple structure in linear type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) Easy -operating, high efficiency.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a conveyor to the machine, which can directly raise production. It is suitable for EPP EPE XPS PUR EVA EPS plastic foam and polystyrene foam, such as foam box, EPS foam board, EPS foam fast food box, Seafood box, Electronic foam, etc.
SPECIFICATIONS
| Model | FHML400B |
|---|---|
| Screw Diameter | φ200mm |
| Input size | 1200mmx900mm |
| Screw rotation speed | 150rpm |
| Crusher blades | about 36-40sets |
| Blade rotation speed | 110rpm |
| Conveyor motor power | 2.2kw |
| Main motor | 22kw*2sets |
| Crusher motor | 4kw*4sets |
| Blower motor power | 5.5kw |
| Heating power | 10kw*2sets |
| Size L*W*H | 8560x6000x4090mm |
