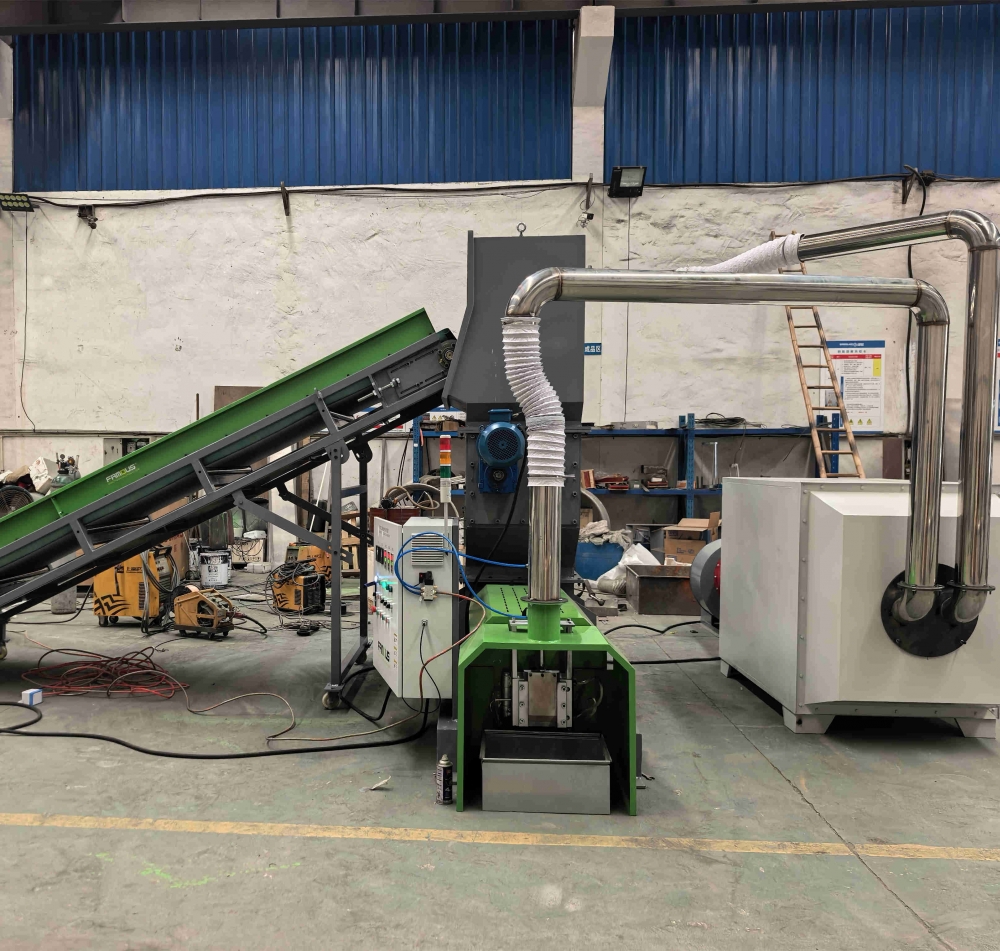

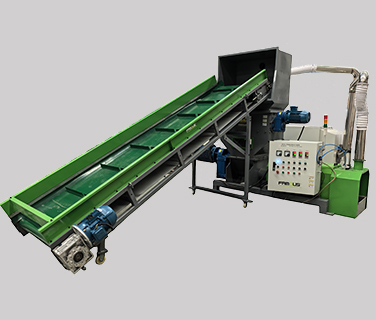

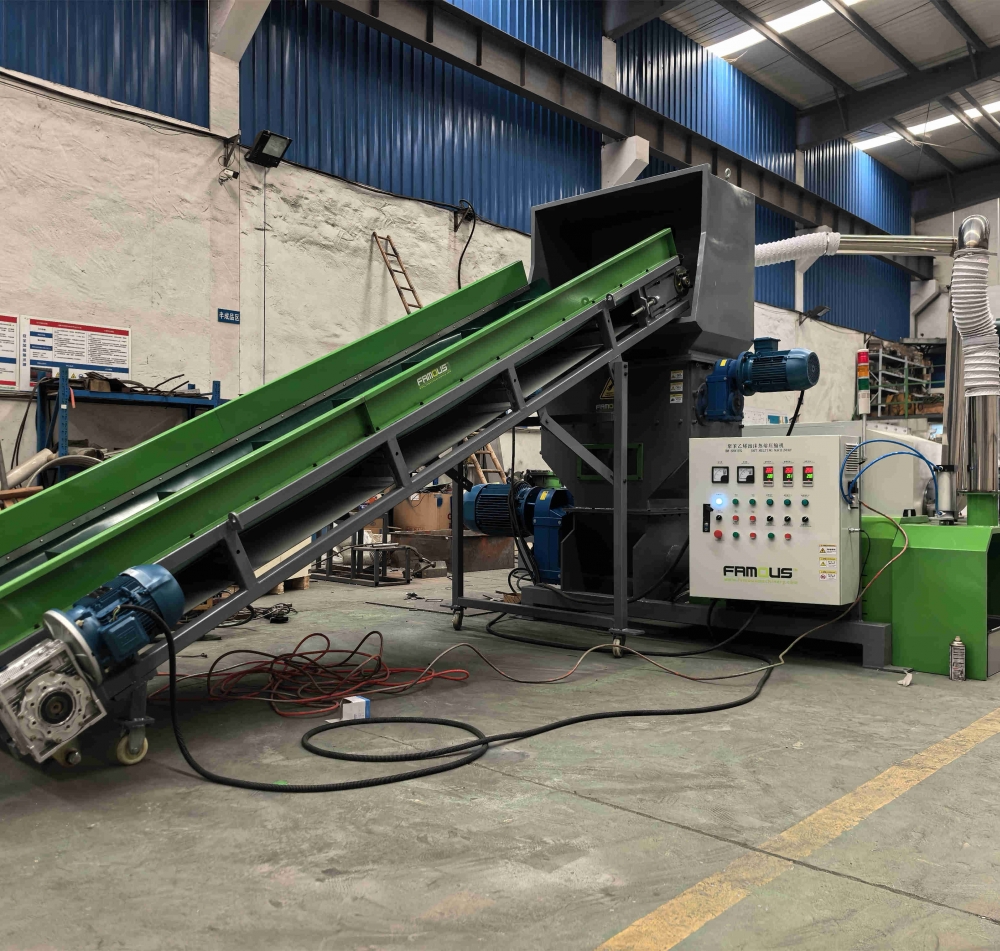

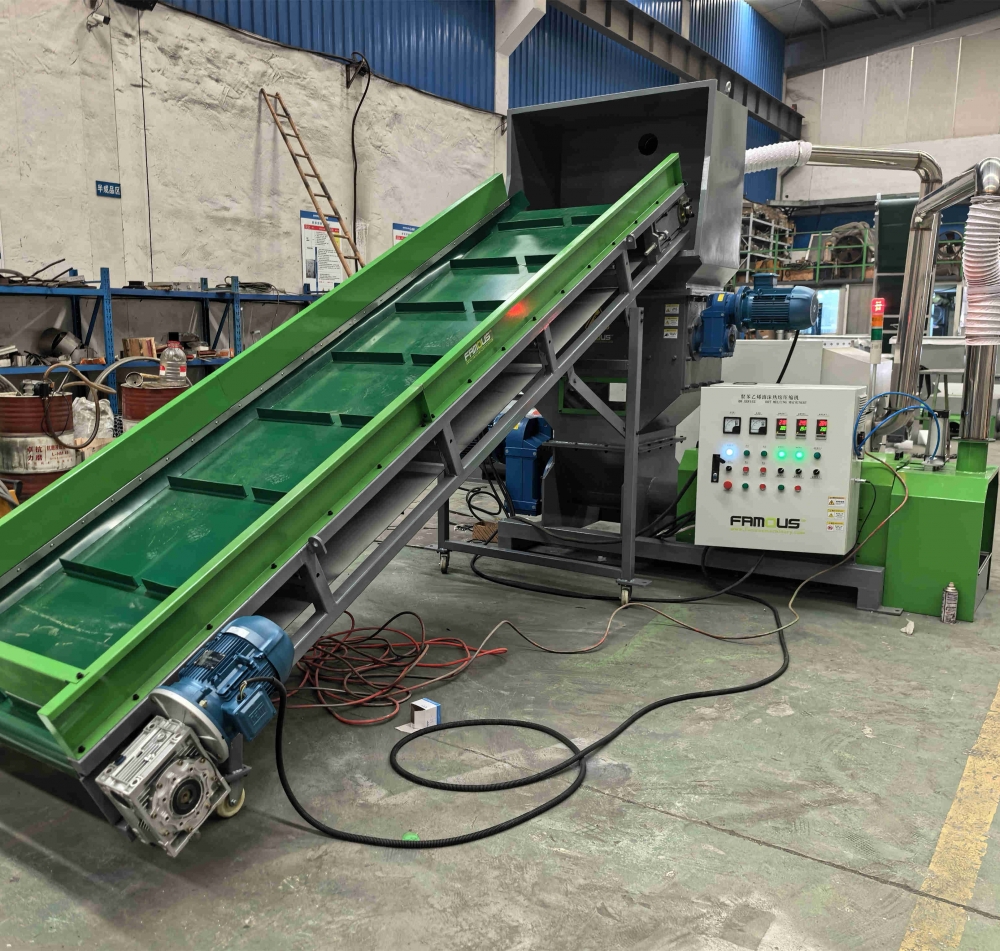

EPE EPP XPS Foam Hot Melting Machine
This design purpose of Foam Hot Melting Machine is to solve the problem of volume reduction of dry foamed EPE EPP XPS foam waste through crushing, hot melting and extrusion. The machine has simple design, compact structure and low maintenance cost.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION
Our foam hot melting machine is simple in design, compact in structure and low in maintenance cost. When the crusher blade is working, it is broken into smaller pieces by cutting blade. The material will be pushed to the heating cylinder by a high-speed rotating screw. The screw of the host machine can transport and heat the material to reach a hot melt state, and then extrude and cut it into pieces using a hydraulic cutter, making it more convenient for storage and transportation.
FHM series foam melting densifier machine is popular in foam waste treatment industry. After being compressed and melted by the equipment, the foam cake can be sold at a high price to recyclers or manufacturers for granulation and production of picture frames and other finished products.
APPLICABLE MATERIALS
-
POLYSTYRENE
XPS INSULATION BOARD
XPS EXTRUDED POLYSTYRENE BOARD
-
POLYETHYLENE
EPE
EPE ROLL/ EPE SHEET
-
POLYPROPYLENE
EPP
EPP BOARD
PRODUCT FEATURES
1. The machine has simple design, compact structure and low maintenance cost.

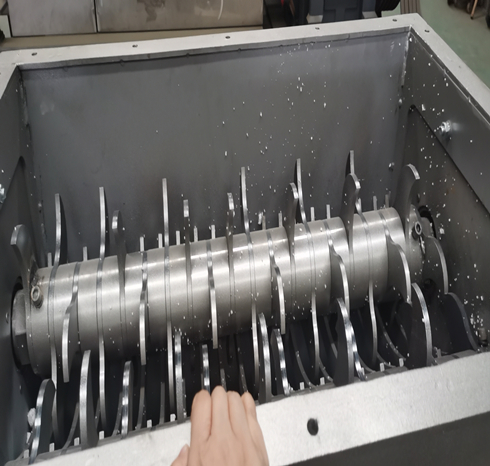

2. When the crusher blade is working, it is broken into smaller pieces by the cutting blade.
3. The material will be pushed to the heating barrel by a high-speed rotating screw.
4. The screw of the main machine can convey and heat the material to make it reach the hot melting state, and then extrude it and cut it into pieces by pneumatic cutter, which is more convenient for storage and transportation.
5. Model FHM200E, FHM400E foam melting machine is very popular in EPE EPP XPS foam waste treatment industry.
6. The foam blocks compressed and melted by this equipment can be sold to recyclers or manufacturers at high prices for granulation to produce finished products such as photo frames.
SPECIFICATIONS
| Model | FHM200E | FHM400E |
|---|---|---|
| Feeding size | 1200*600mm | 1400*600mm |
| Screw diameter | φ190-120 mm | φ190-120 mm |
| Screw speed | 110 r/min | 110 r/min |
| Heating power | about 20kw | about 20kw |
| Main Motor power | 22kw | 30kw |
| Crusher motor power | 4kw*2sets | 5.5kw*2sets |
| Crusher blades quantity | about 38sets | about 48sets |
| Machine weight | 1500kg | 2200kg |
| Capacity | about 150-200kg/h | about 200-250kg/h |
