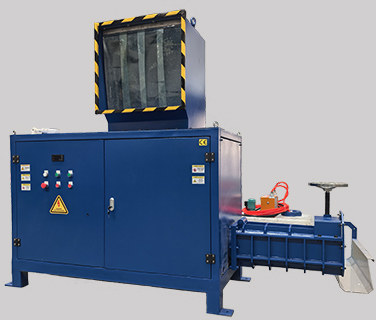

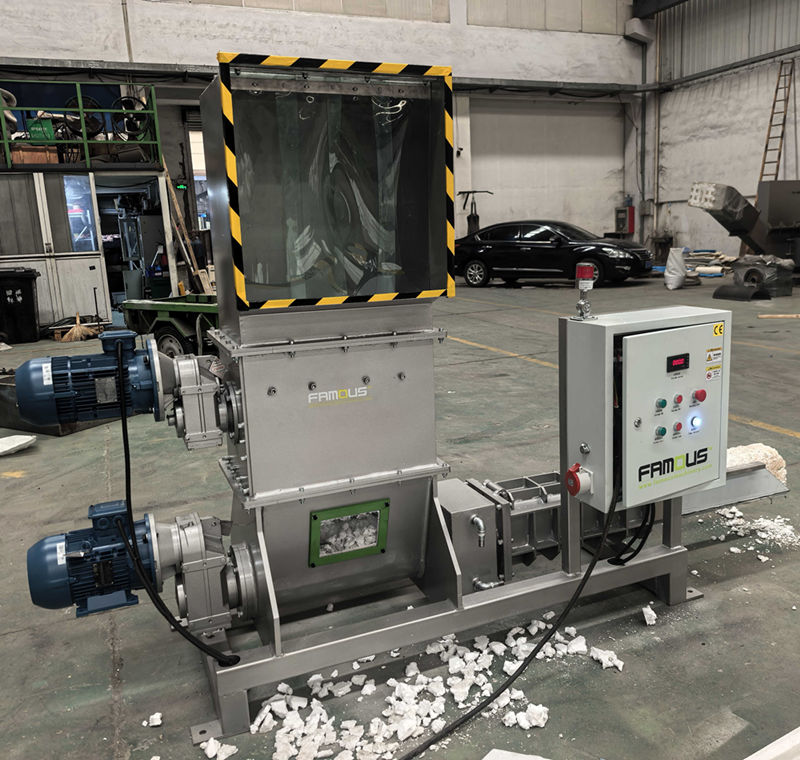

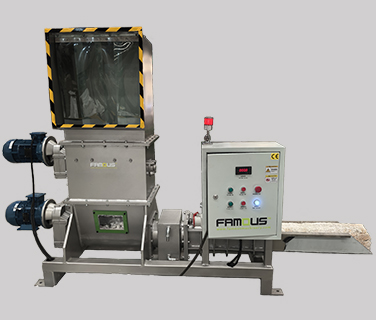

Mini EPS Styrofoam Compactor
This Small EPS foam compactor is a mechanical and environmental protection equipment that kneads foamed plastics according to the principle of pressure generated by screw rotation and performs cold compression treatment. During operation, the operator only needs to put the foam into the hopper, and the equipment will crush foams and extrude by screw, then form a square compression block after being processed.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION

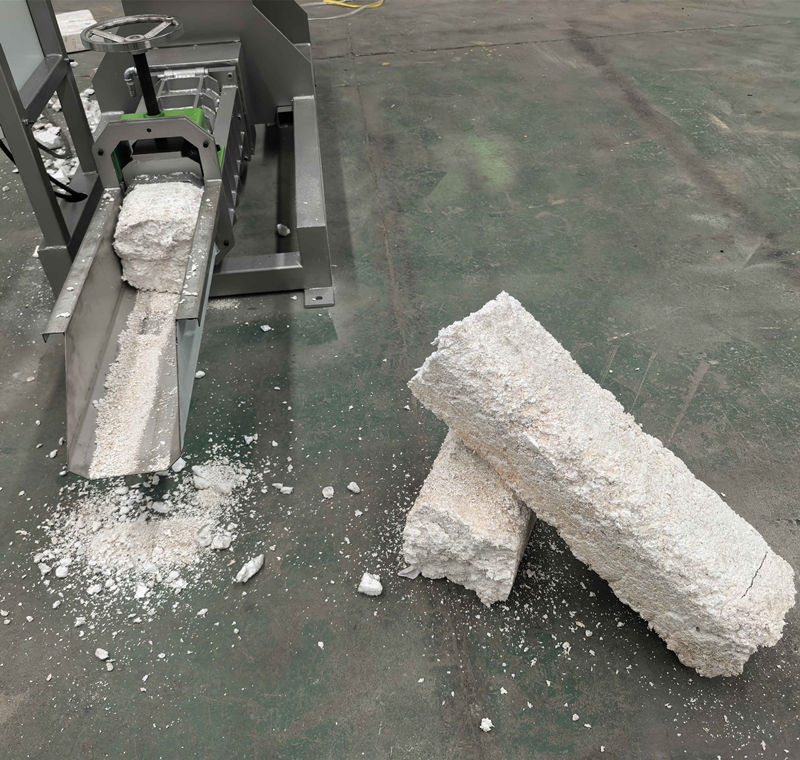

The EPS is pre-crushed in the hopper and extruded by the screw, the hydraulic compact manually the EPS to solid and uniform blocks.
APPLICABLE MATERIALS
-
POLYSTYRENE
EPS/ EPS DUST
EPS CUPS&TRAYS/ XPS
-
POLYETHYLENE
EPE
EPE ROLL/ EPE SHEET
-
POLYPROPYLENE
EPP
PRODUCT FEATURES
1. Low power and energy, have different capacity for customer choice;
2. Turn waste to reusable material;
3. No heating in the process;
4. Can equipped with belt conveyor to reduce the manual labor;
5. Safe electric control and easy operation with CE&RoHS certification;
6. It can be equipped with a silo system before compacting, and the crusher part can be designed according to different materials.
SPECIFICATIONS
Model | FCP200A or FCP200B | FCP250 | FCP380 |
Screw Diameter | Φ180mm | Φ240mm | Φ350mm |
Input size | 560mmx400mm | 900mmx600mm | 1000mmx900mm |
Screw rotation speed | 36rpm | 42rpm | 42rpm |
Crusher blades | about 9sets | about 18sets | about 36sets |
Blade rotation speed | 120rpm | 120rpm | 120rpm |
Main motor | 4kw | 7.5kw | 15kw |
Crusher motor | 3kw | 3kw*2sets | 3kw*4sets |
Hydraulic motor | No | 1.5kw | 1.5kw |
Production size | 200x200mm | 250x250mm | 380*380mm |
Machine Weight | 1200kg | 1500kg | 2500kg |
