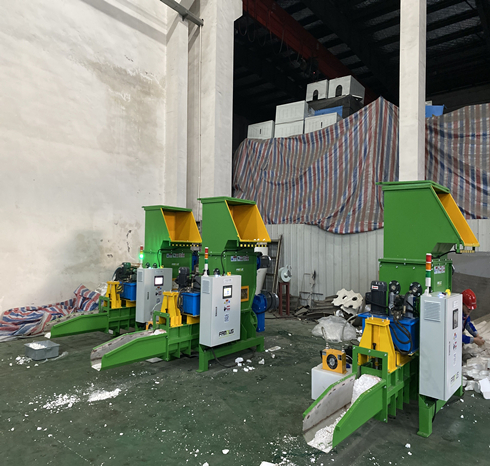

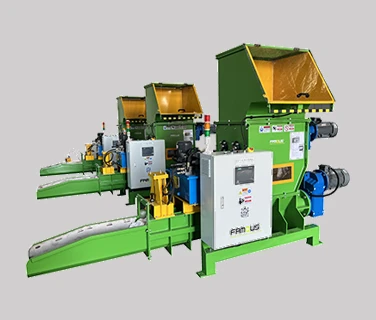

EPS EPE EPP XPS Foam Compactor
The equipment has a capacity of about 100kg per hour and can handle various foam wastes, such as EPE expanded polyethylene, EPP expanded polypropylene, EPS expanded polystyrene, XPS extruded polystyrene, PSP polystyrene paper, food containers and cups.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION
Model: EPS Compactor-FCP250
Capacity: about 100 kg/hour
Total power: about 16kw
Compression ratio: about 50:1
Processing Materials: EPS foam polystyrene, EPS lunch box, XPS insulation board, EPE foam polyethylene, EPP foam polypropylene
The equipment has a capacity of about 100kg per hour and can handle various foam wastes, such as EPE expanded polyethylene, EPP expanded polypropylene, EPS expanded polystyrene, XPS extruded polystyrene, PSP polystyrene paper, food containers and cups.
APPLICABLE MATERIALS
-
POLYSTYRENE
EPS/ EPS DUST
EPS CUPS&TRAYS/ XPS
-
POLYETHYLENE
EPE
EPE ROLL/ EPE SHEET
-
POLYPROPYLENE
EPP
PRODUCT FEATURES
1. The EPS foam can be directly crushed, extruded and compressed without heating, and the volume can be reduced by 50 times. The volume of foam compressed by the recycling equipment is very small, which is convenient for loading, unloading, carrying and transportation, and saves transportation costs.
2. Non-toxic, odorless; green environmental protection.
3. The rated capacity of this series of machines for processing materials is around 100KG/H to meet customer requirements under this capacity.
4. This machine has two modes: automatic mode and manual mode, which are very user-friendly to meet the needs of different operators.
5. The equipment is very reliable and can be operated by users for a long time without accidents
SPECIFICATIONS
Model | FCP200A or FCP200B | FCP250 | FCP380 |
Screw Diameter | Φ180mm | Φ240mm | Φ350mm |
Input size | 560mmx400mm | 900mmx600mm | 1000mmx900mm |
Screw rotation speed | 36rpm | 42rpm | 42rpm |
Crusher blades | about 9sets | about 18sets | about 36sets |
Blade rotation speed | 120rpm | 120rpm | 120rpm |
Main motor | 4kw | 7.5kw | 15kw |
Crusher motor | 3kw | 3kw*2sets | 3kw*4sets |
Hydraulic motor | No | 1.5kw | 1.5kw |
Production size | 200x200mm | 250x250mm | 380*380mm |
Machine Weight | 1200kg | 1500kg | 2500kg |
