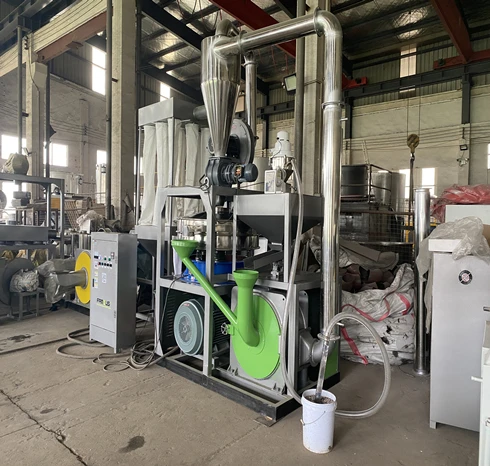

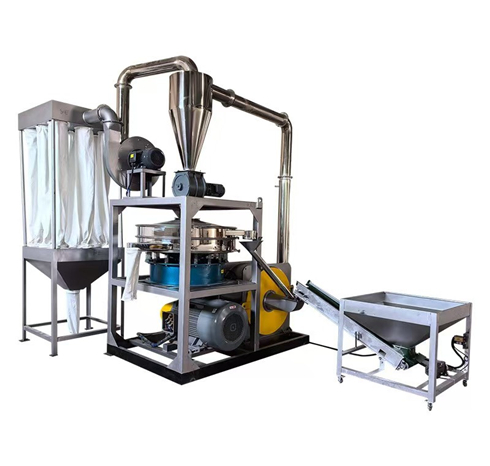

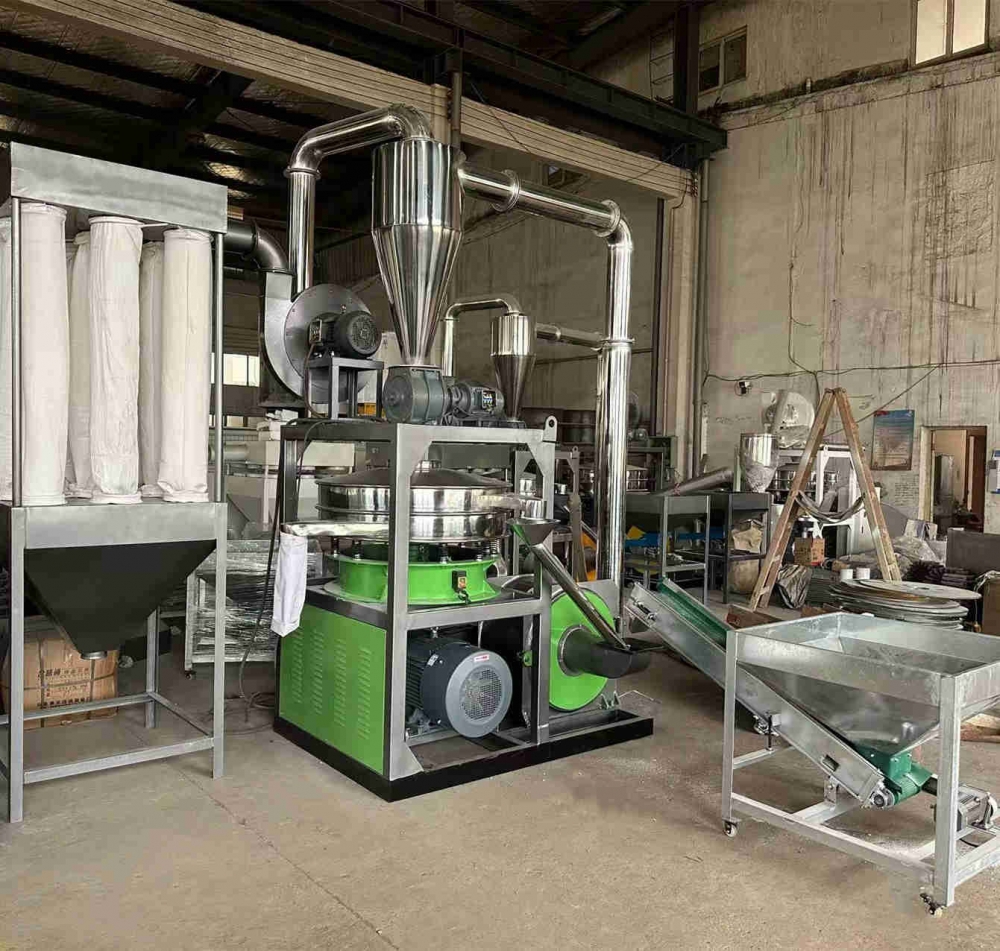

EPS pulverizer grinding machine can grind EPS hot melt block material into powder

Product Specifications:
  • MODEL

    SMF Series

  • CAPACITY

    50-500kg/h

Inquiry
  • Product Description
  • Applicable Materials
  • Product Features
  • Specifications
  • Machine Video

PRODUCT DESCRIPTION

1. According to different raw materials, the output of this machine can reach 50-500kg per hour, and the mesh number can reach 10-80 meshes.

2. This product is beautiful and elegant in design, and it is a pollution-free and environment-friendly high-quality product.

3. This product has reasonable design and simple operation, and it only takes half an hour to replace the wearing parts in the machine. Compared with other similar products, it is easier to disassemble and assemble, and it is safe and reliable.

4. This product can adjust the particle thickness, and the mesh number can be adjusted to 10~80 meshes.

5. the use of water circulation and wind cooling, suitable for the processing of heat-sensitive substances.

6. This machine produces high-speed rotating airflow (local vortex) due to the high-speed rotation of the spindle cutter head, which makes the incoming materials collide strongly with the blades at high speed and become powder.

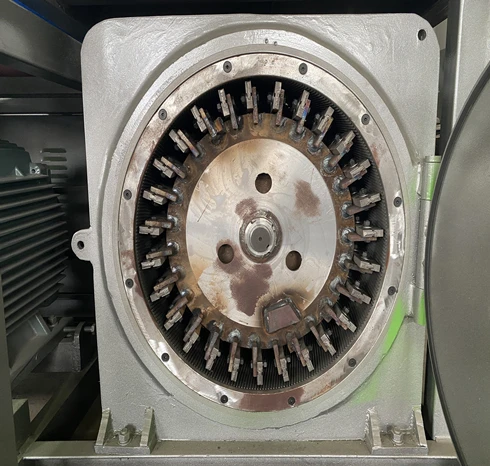

7. After special design, the grinding plate and blade are all made of wear-resistant steel precision casting process, and after heat treatment, their wear resistance reaches the highest peak.

8. This machine is compact in structure and small in volume. It can be maintained as long as the door cover is opened. It is completely sealed and has no dust leakage.

APPLICABLE MATERIALS

  • EPS HOT MELTED BLOCK

PRODUCT FEATURES

1. The capacity of this model is higher than other kind of miller.

2. Equipped with dust collection device to reduce dust pollution.

3. Close blower for discharge can reduce labor intensity of worker and save money for clients.

4.The cover of main machine can be opened for maintain.

5.The cooling system include the water and wind cooling for the machine body.

SPECIFICATIONS

Model

SMF-400

SMF-500

SMF-600

SMF-800

Main Motor power (kw)

30

37

45/55

55/75

Capacity (20-40 mesh)

(kg/h)

50-120

150-200

250-350

300-500

Material of conveying pipe

Stainless steel

Rotary blade

18

24

27

40

Fixed blade

10

12

14

20

Weight of pulverizer

(kg)

1000

1200

1800

2300

Cooling

Wind cooling +water cooling
