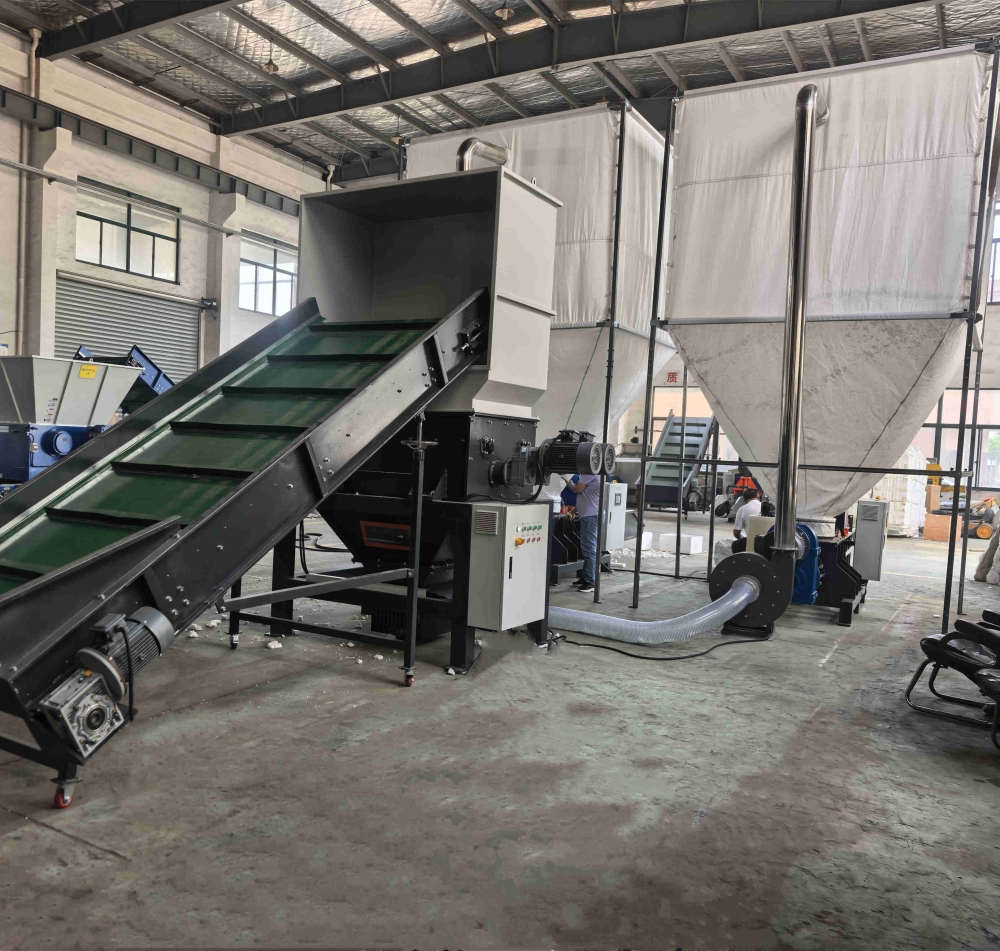

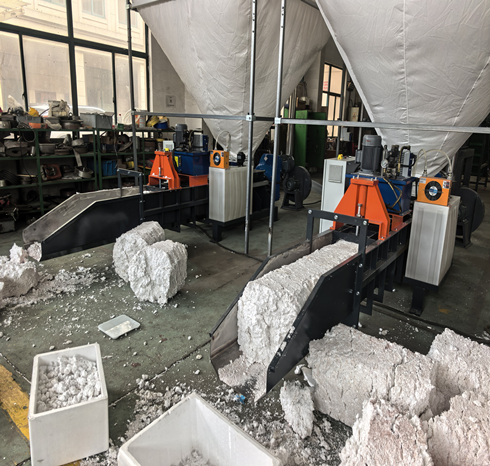

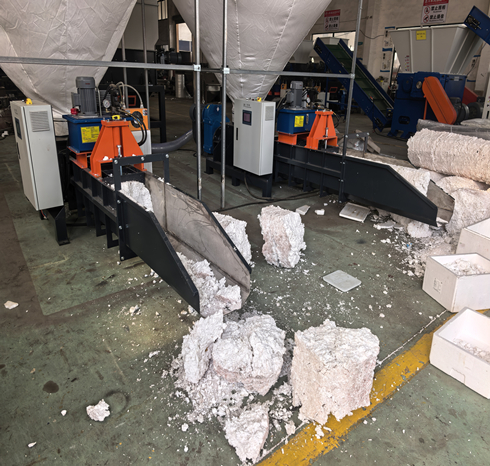

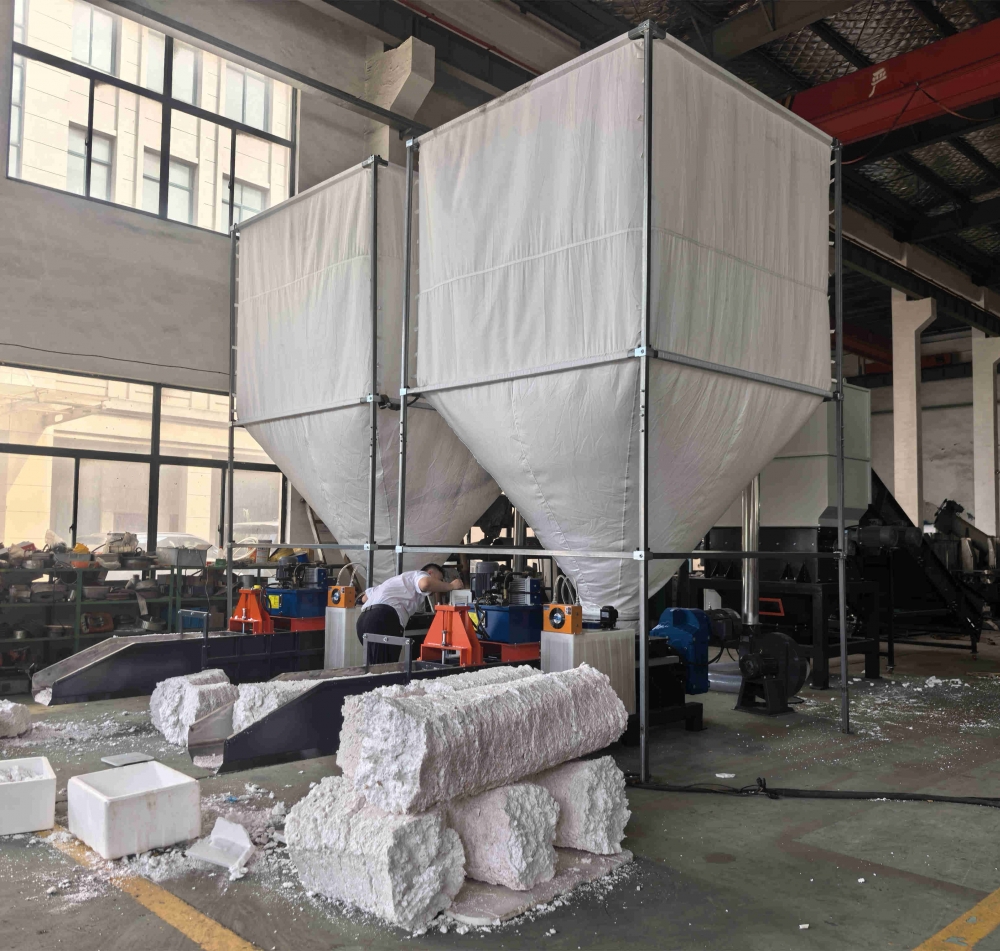

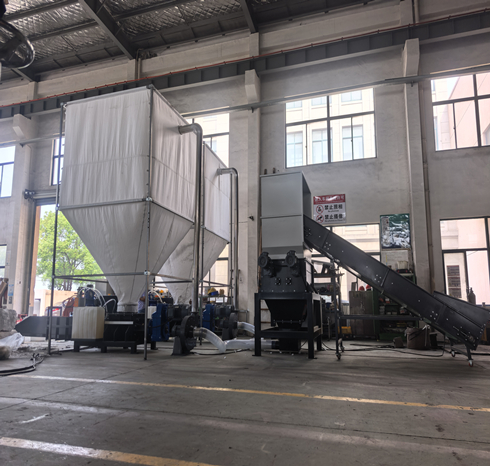

EPS Compactor Line With Two Silo System
Our compaction System suitable for EPS EPP EPE XPS.
Application: This compactor line is used to compact the plastic waste like EPS EPP EPE XPS. The good reduction in volume can be achieved in this manner to save transport and disposal cost. Compressed block can be reused as high quality granulates by recycling companies and other related manufacturers.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION
Processing Method: feeding plastic waste into hopper of the machine, and then the crusher with four rotating knife shafts will crush it into 10~50mm pieces, which are forced by a screw into the pressure channel.
APPLICABLE MATERIALS
-
POLYSTYRENE
EPS/ EPS DUST
EPS CUPS&TRAYS/ XPS
-
POLYETHYLENE
EPE
EPE ROLL/ EPE SHEET
-
POLYPROPYLENE
EPP
PRODUCT FEATURES
The motor for crusher and screw compactor: Gear reducers.
The compressed drive: Hydraulic and Electrical motor can be optional.
Automatic pressing control device (optional).
The pressure channel is made of stainless steel instead of iron without rust.
Switch cabinet has Siemens PLC and touch screen unit.
It can be fed by manual, belt conveyor or blower and silo system.
SPECIFICATIONS
Model | FCPL380 |
Screw Diameter | Φ350mm |
Input size | 1400mmx900mm |
Screw rotation speed | 42rpm |
Crusher blades | about 60sets |
Blade rotation speed | 120rpm |
Main motor | 15kw*2sets |
Crusher motor | 4kw*4sets |
Hydraulic motor | 2.2kw*2sets |
| Blower motor | 5.5kw*2sets |
Production size | 380*380mm |
Machine Weight | around 5000kg |
