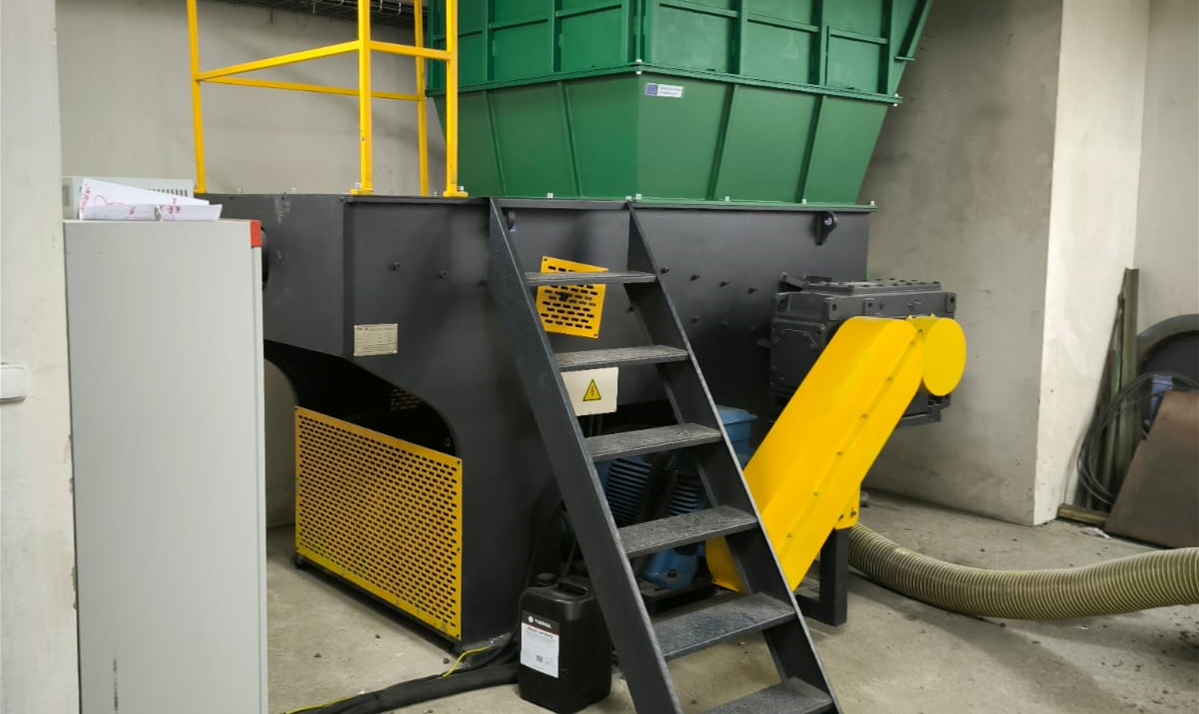

Single Shaft Shredder Machine Installed in Czech

PROJECT OVERVIEW

On December 25th, 2024, we delivered a single shaft shredder to a Czech customer. This customer found us on the website in August of this year. At that time, he was looking for equipment for shredding PP PE purging materials and plastic tray/pallets. Because of the limitation of the customer's factory space, his equipment size needed to be customized. Therefore, we immediately provided 3D drawings to our customers, who recognized our design and processing ability and placed an order to us soon. After the production of the equipment was completed, the equipment was accepted this month. The customers were very satisfied and would like to be our agent in the future.

If you would like to know more about this product, welcome to inquiry us!

PROJECT: Single Shaft Shredder Machine
YEAR: 2024
LOCATION: Czech
PURPOSE: Shredding PP PE Purgings and Plastic Pallets
CAPACITY: 2000-3000kg/hr

Single Shaft Shredder

SXR Series
Rotary shaft

The rotary shaft made by high quality carbon steel, anti-worn
Rotor blade

The rotor blade made by D2, fixed on the blades holder by screw easy to remove and maintenance, blade can use 4 times when the blade worn after using long time
Fixed Blade

The fixed blades are movables to adjust and longer time use . Using D2 material, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC53 material
Screen

The screen use 10mm thickness carbon steel made, with 40-100mm screen, the flakes will easy shredding and down

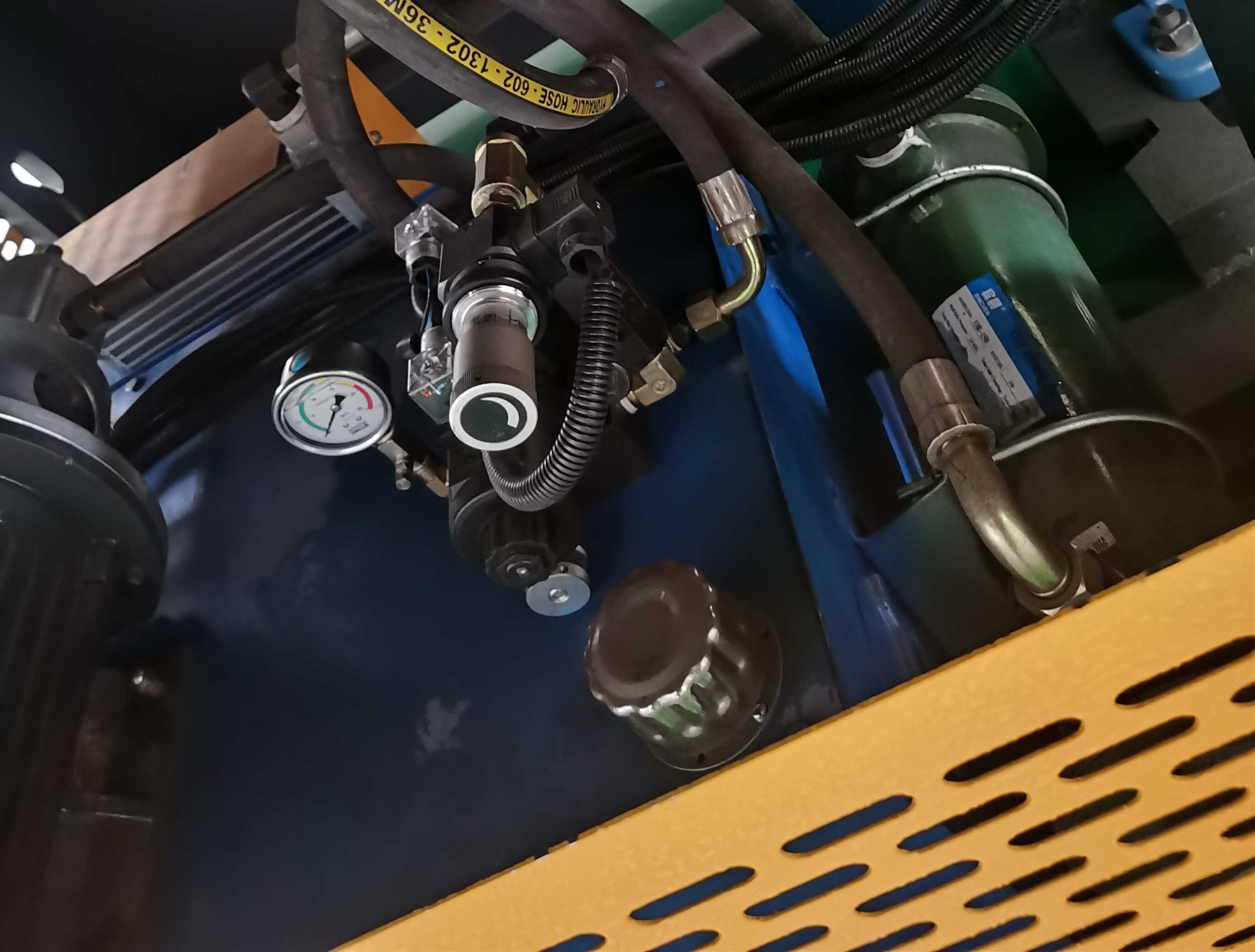

Hydraulic pump station

Oil cylinder effective working. Pushing speed is adjusted by manual

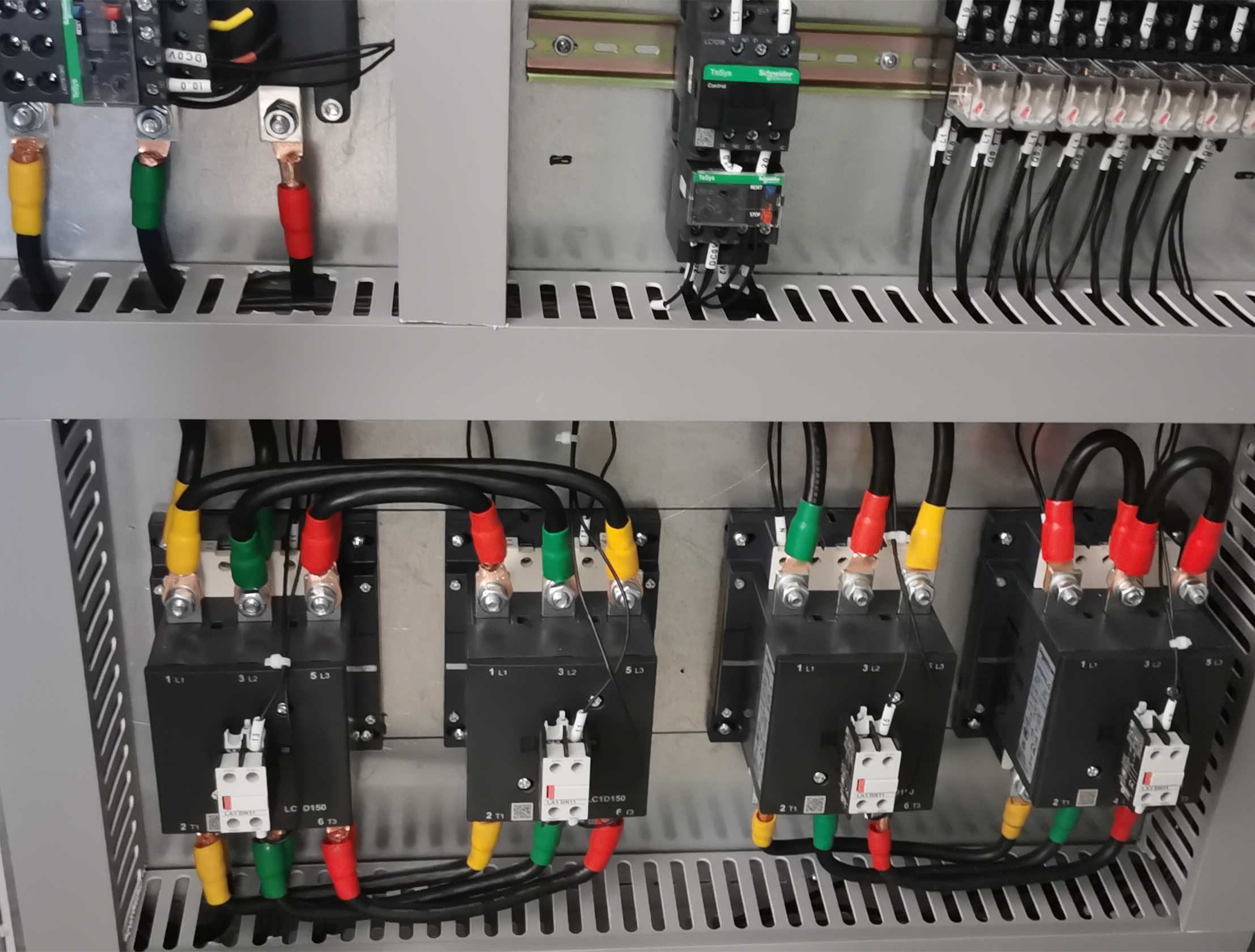

Contactors

Use Schneider brand in us control system

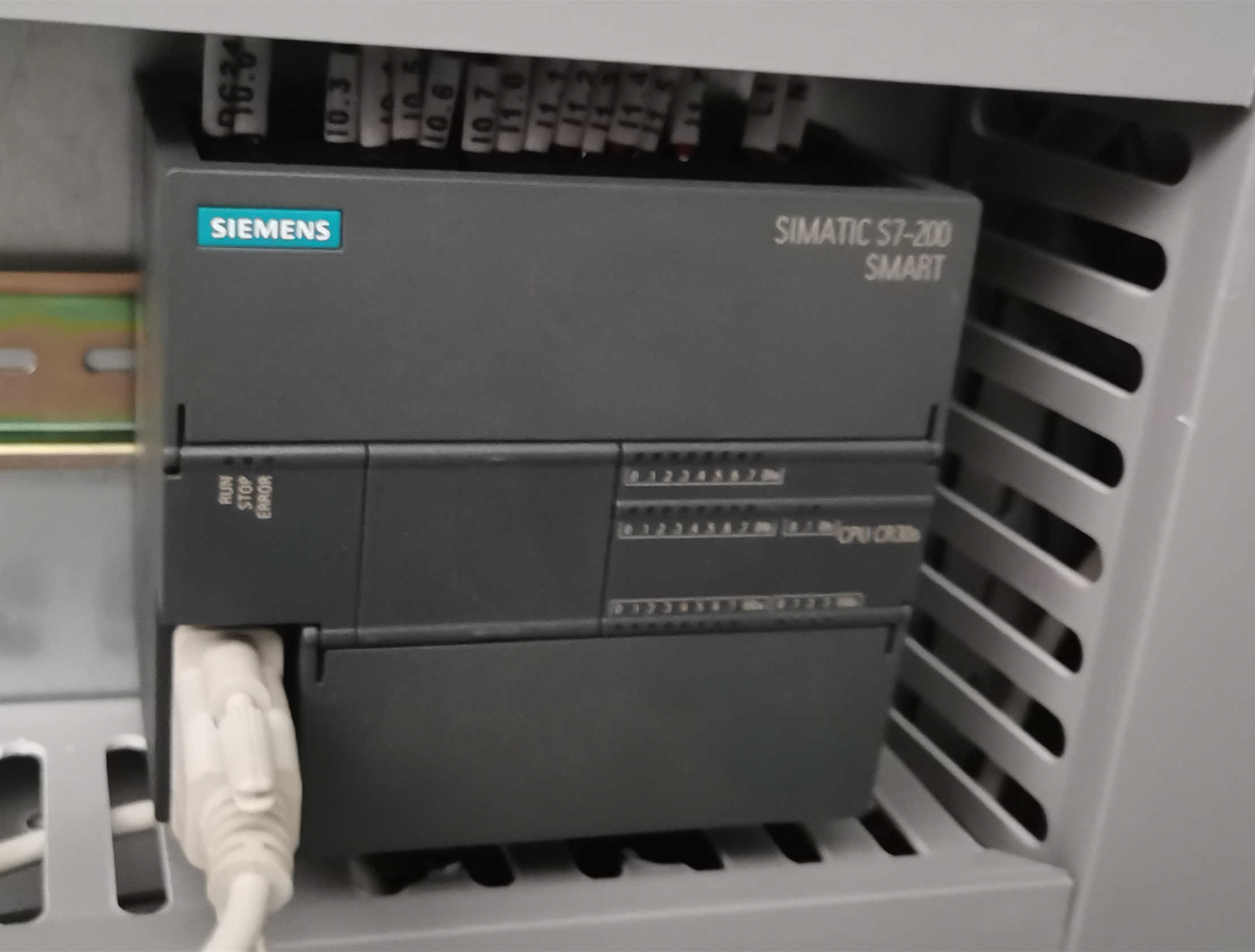

PLC

Use Siemens PLC for shredder machine. Automatic control rotor shaft positive, negative rotary
