PROJECT OVERVIEW

In July 2022, FAMOUS MACHINERY shipped 1set of Plastic Shredder to Bangladesh.

The customer is a famous PE pipe manufacturer in South Asia. Over the years, many substandard pipes and die purging materials have been produced. The customer visited our company many times and finally chose us as their shredding equipment supplier. This shredder is novel in design and simple in operation. The output is about 500kg/h per hour. The size of crushed block shall be ≤ 4cm.

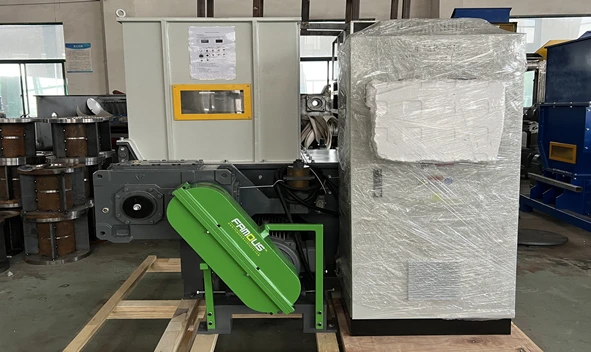

After the acceptance of the customer's trial testing, the export standard wooden packaging will ensure the safety of the equipment to the customer's factory all the way.

If you would like to know more about this shredder, welcome to inquiry us!

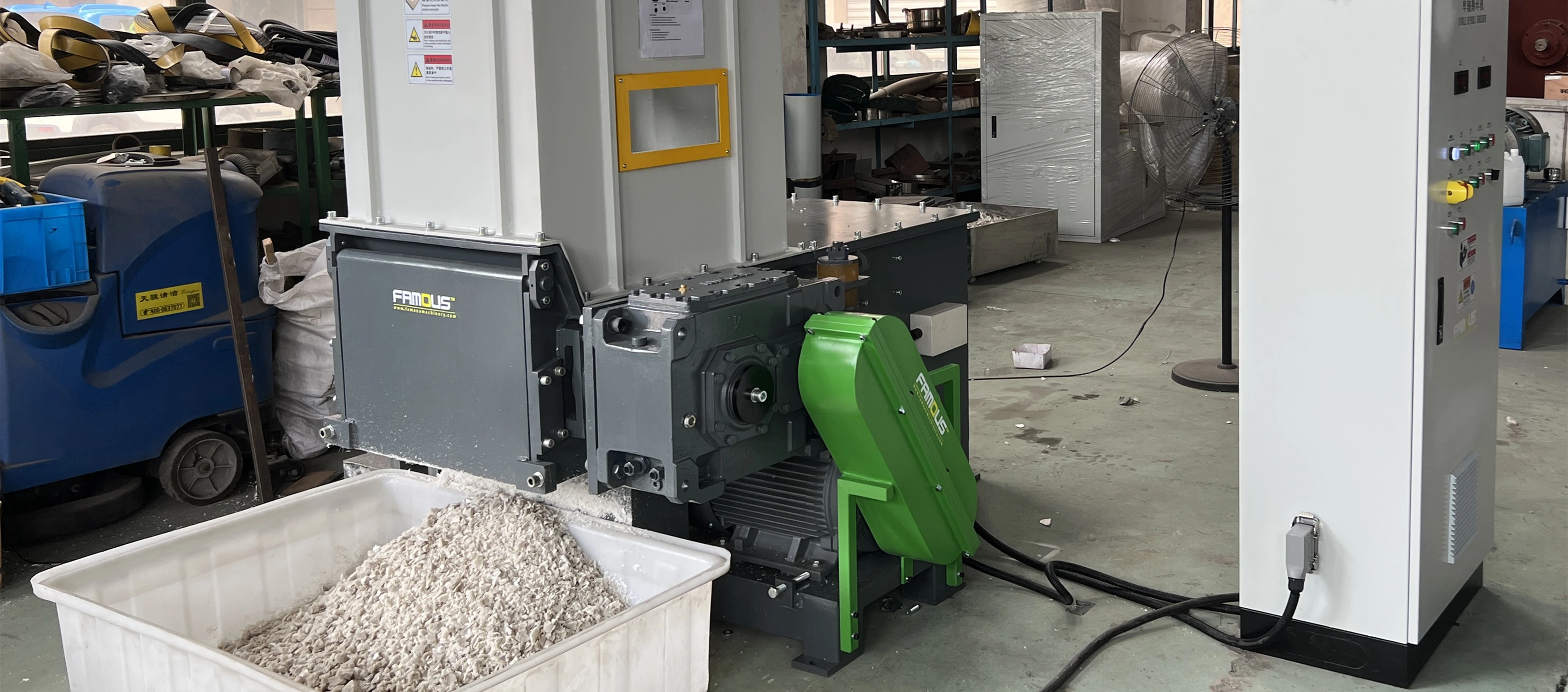

  • PROJECT: Single Shaft Shredder Machine

    PROJECT: Single Shaft Shredder Machine

  • YEAR: 2022

    YEAR: 2022

  • LOCATION: Bangladesh

    LOCATION: Bangladesh

  • PURPOSE: PE Lump Shredding into Small Pieces

    PURPOSE: PE Lump Shredding into Small Pieces

  • CAPACITY: 500kg/hr

    CAPACITY: 500kg/hr

  • Single Shaft Shredder

    Single Shaft Shredder

    XR Series

  • Rotary shaft

    Rotary shaft

    The rotary shaft made by high quality carbon steel, anti-worn

  • Rotor blade

    Rotor blade

    The rotor blade made by D2, fixed on the blades holder by screw easy to remove and maintenance, blade can use 4 times when the blade worn after using long time

  • Fixed Blade

    Fixed Blade

    The fixed blades are movables to adjust and longer time use . Using D2 material, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC53 material

  • Screen

    Screen

    The screen use 10mm thickness carbon steel made, with 40-100mm screen, the flakes will easy shredding and down

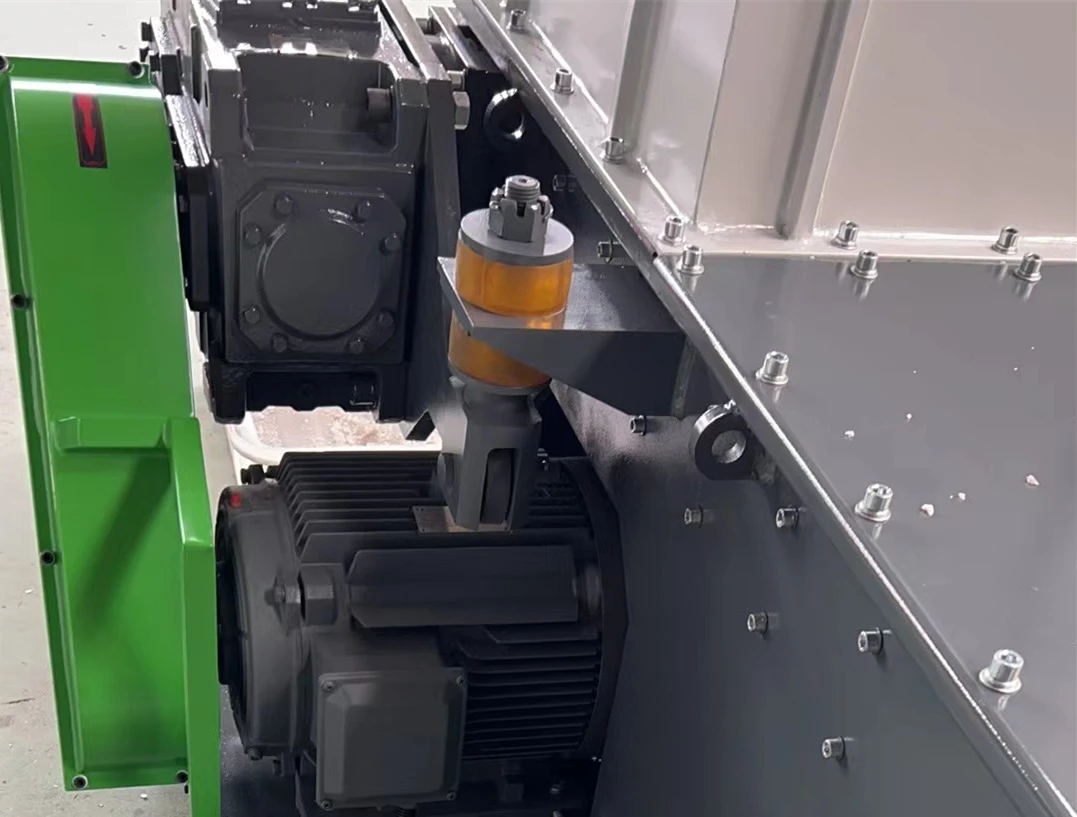

  • Hydraulic pump station

    Hydraulic pump station

    Oil cylinder effective working. Pushing speed is adjusted by manual

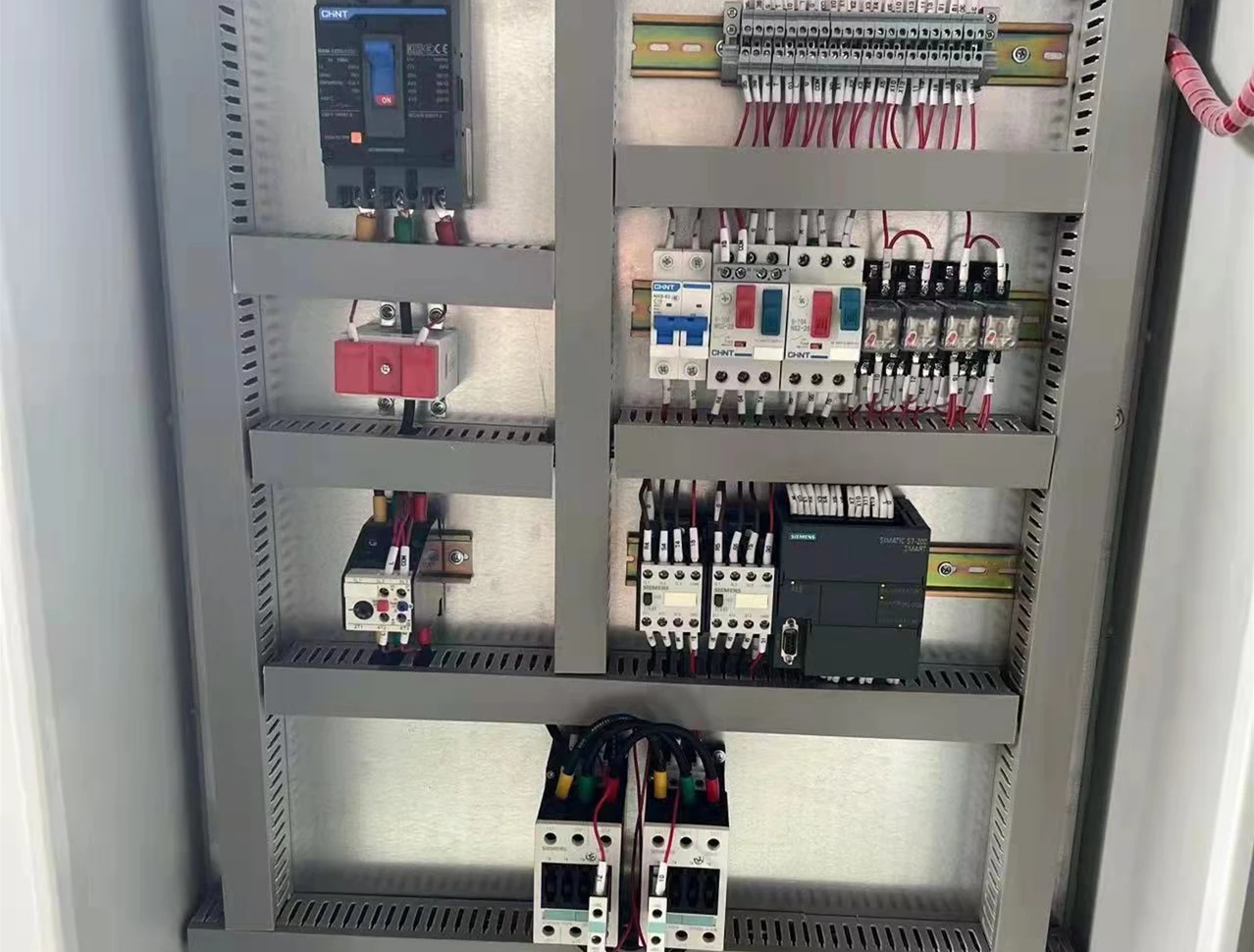

  • Contactors

    Contactors

    Use Schneider brand in us control system

  • PLC

    PLC

    Use Siemens PLC for shredder machine. Automatic control rotor shaft positive, negative rotary
