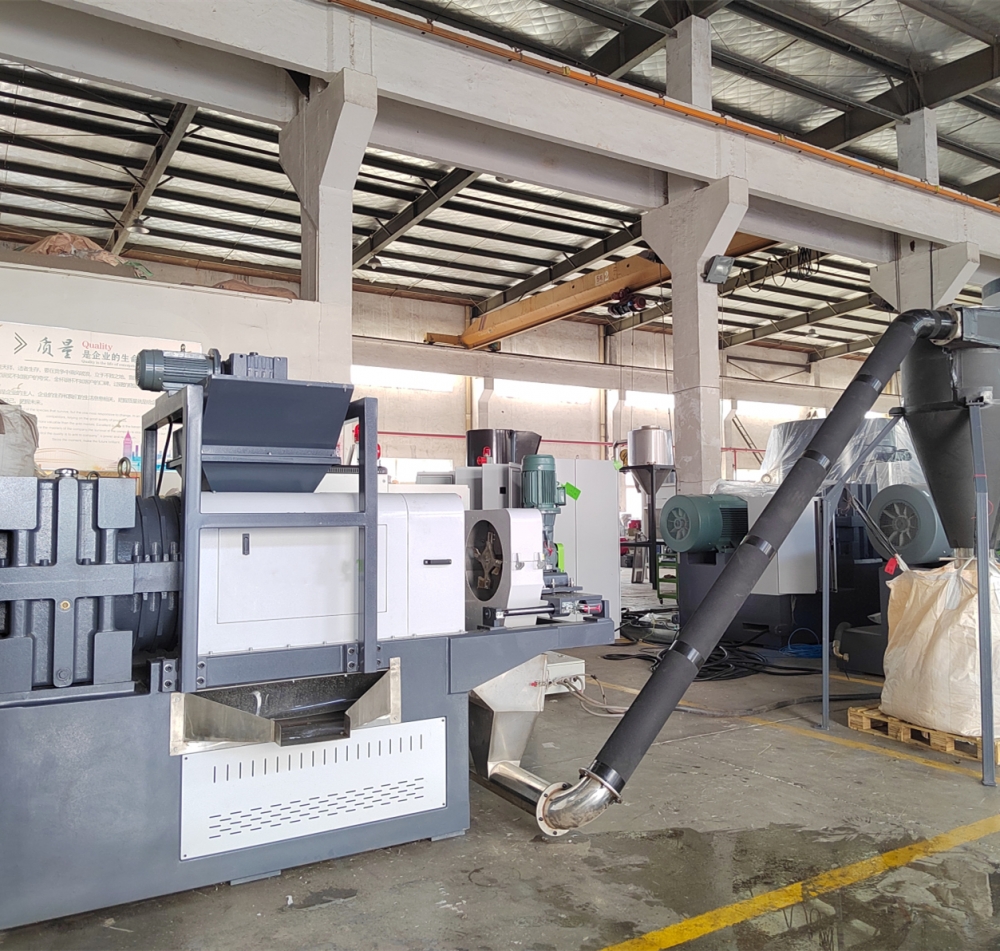

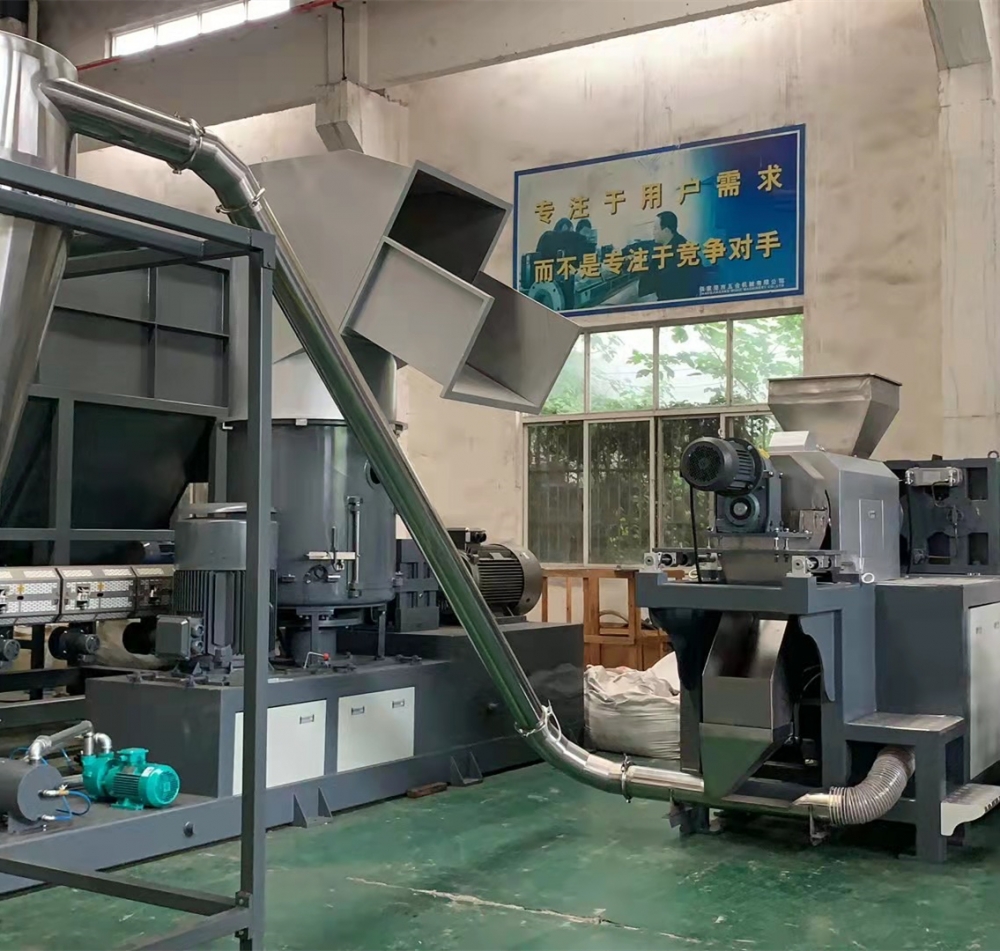

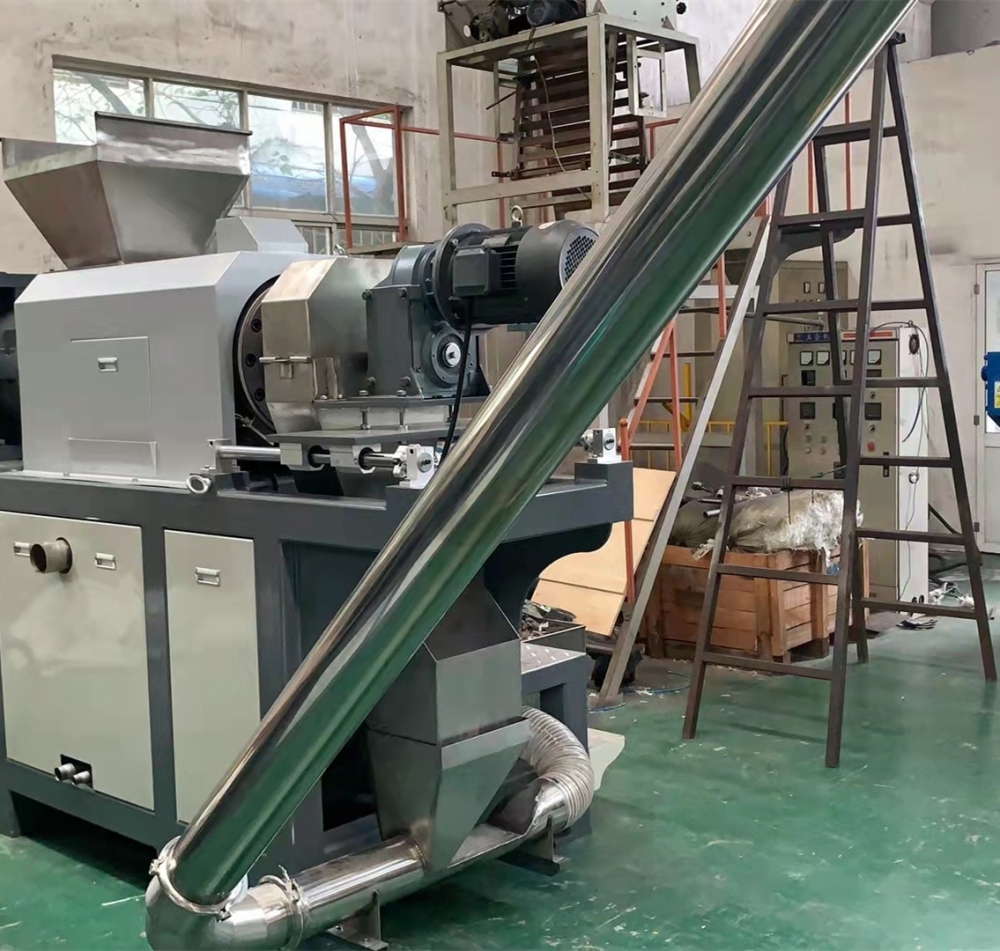

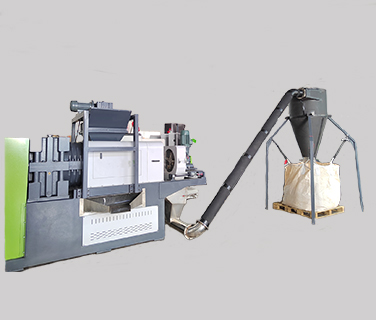

PP PE Film Squeezing Pelletizing Machine
This plastic film squeezing pelletizing machine is used for drying washed film, woven bags.etc. and make it into semi-plasticized granules. After that the granules can put into the extruding pelletizer directly.
- Product Description
- Applicable Materials
- Product Features
- Specifications
- Machine Video
PRODUCT DESCRIPTION

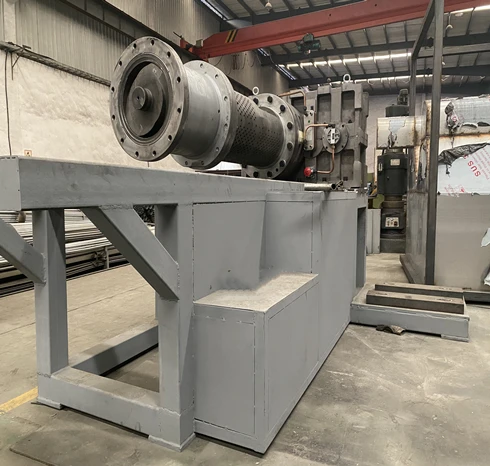

It is a full automatic squeezing & pelletizing pachine for the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is less than 3%.
APPLICABLE MATERIALS
-
WASTE PLASTICS
PRODUCT FEATURES

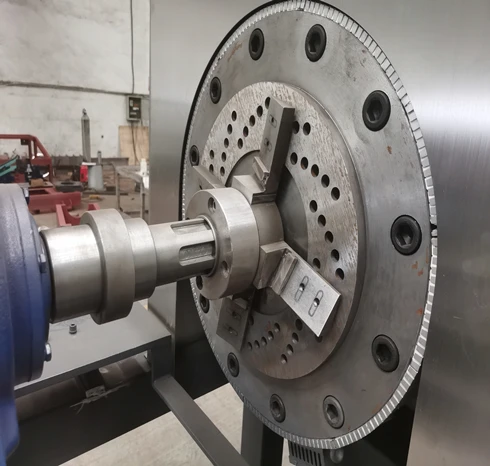

1)This machine is our new designed machine, It adopts Siemens PLC control, Adopt the latest technology from Taiwan, specially screw pressing design;
2) Pelletizer and main screw driving is frequency converting control;
3)This machine is especially for plastic film, plastic bags, woven bags, jumbo bags, etc.
4)Instead of the dewatering machine, hot air blower drying in the recycling line and saving the energy;
5)Highly improve quality and output of the PP/PE granulating line;
6)Dewatering function is better, final products humidity less than 3%;
7)Long working life, running stability and easy to operate.

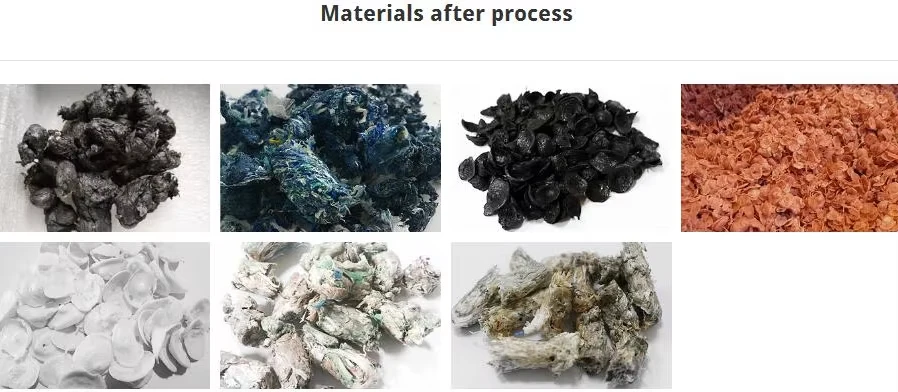

Application: to squeeze and granulate wet PE film, PP woven bags, the finally material is semi-plasticizing products, the recycled material is more suitable for PE PP pelletizing machine.
SPECIFICATIONS
No. | Items | JR300 | JR320 | JR350 | JR380 |
1 | Motor power | 75-90kw | 110-132kw | 160-185kw | 185-200kw |
2 | Screw diameter | 300mm | 320mm | 350mm | 380mm |
| 3 | Cutting motor power | 4kw | 4kw | 5.5kw | 7.5kw |
| 4 | Blower motor power | 5.5kw | 5.5kw | 7.5kw | 7.5kw |
5 | Capacity | 300-400kg/h | 400-600kg/h | 600-800kg/h | 800-1000kg/h |
6 | Electric control | PLC (Siemens) | PLC (Siemens) | PLC (Siemens) | PLC (Siemens) |
